Surface Center Winding Machine
Category：Winding Machine
-
+86-18000876276 WhatsApp

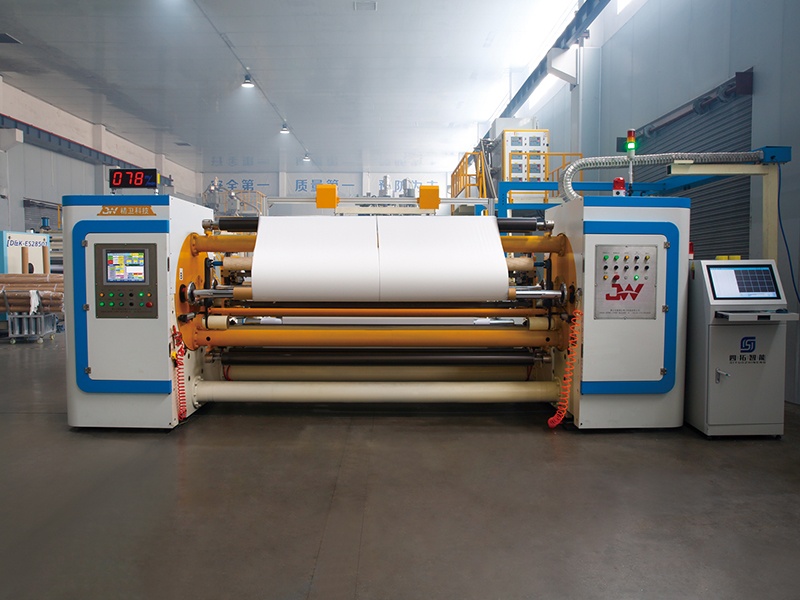

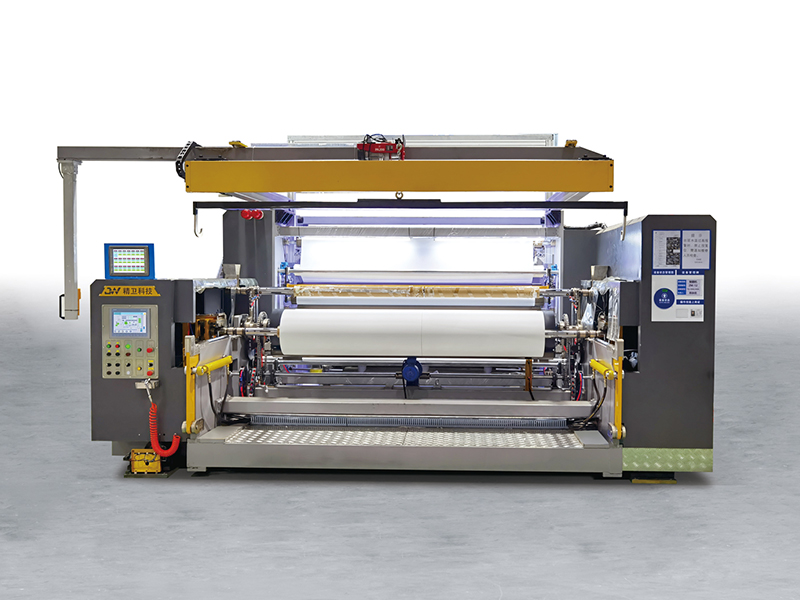

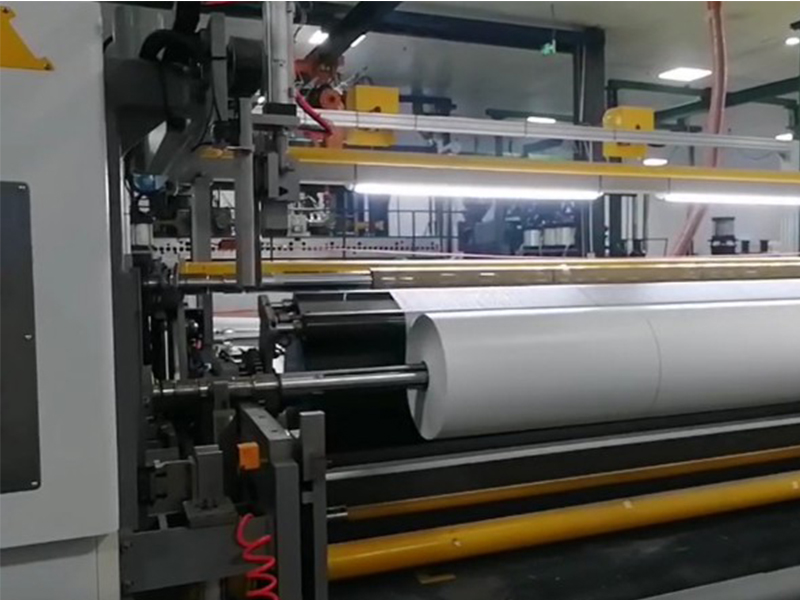

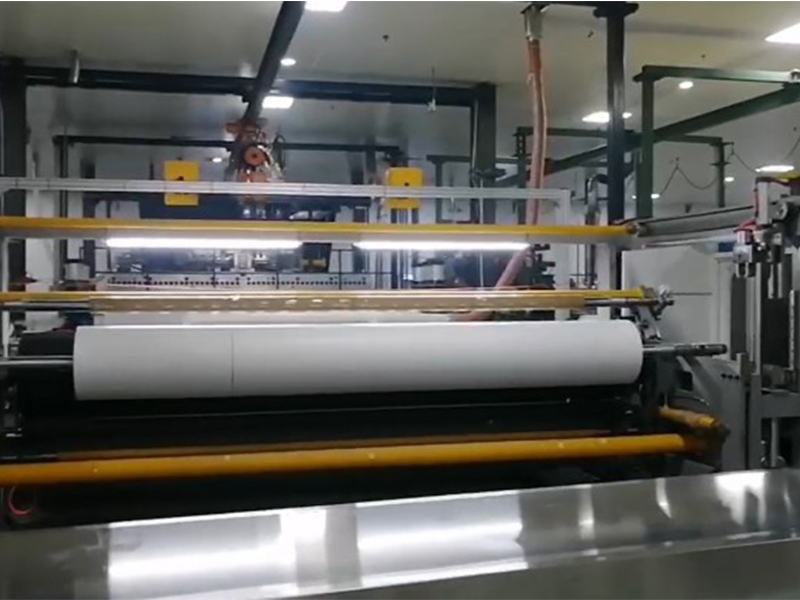

Breathable Film Winding Machine is an automated high-precision winding equipment specially developed for the post-processing of thin breathable film and cast film materials. The whole machine adopts a modular structure design, and the exterior consists of an integrated frame, a double-station winding arm, a servo drive system, an electric control operation panel and a safety shield. The body coating is industrial-grade anti-corrosion powder spraying, the surface cables are embedded, and the appearance is simple and neat.
Surface Center Winding Machine Parameter
| Model No. | Max Rewinding Dia | Max Rewind Width | Max Speed |
| JW-SJ2300BM | Φ1000mm | 2300mm | 300m/min |
| JW-SJ2800BM | Φ1000mm | 2800mm | 300m/min |
| JW-SJ3600BM | Φ1000mm | 3600mm | 300m/min |
※Remarks: Other sizes of machines are available upon request
Surface Center Winding Machine Features
Intelligent centralized control system
Breathable Film Winding Machine adopts German SIEMENS SIMATIC high-end motion controller for centralized control, with multi-axis synchronous operation capability and high-speed real-time data processing function. The equipment can run at a maximum speed of 600m/min, and the operation response time is ≤ 0.5 seconds, ensuring that the coil is always in a stable winding state at high speed.
Efficient servo drive system
Breathable Film Winding Machine is equipped with a complete German SIEMENS servo drive system, which continuously and adaptively adjusts the unwinding tension, winding line speed, and coil diameter change. The maximum roll diameter is Φ1200mm, and the tension error is controlled within ±1.5N, which effectively ensures neat winding and consistent density.
Pre-drive mode improves roll changing efficiency
Breathable Film Winding Machine adopts the "preparatory shaft pre-drive mode". When the main reel has not completed winding, the spare reel can be rotated to the synchronous speed in advance to ensure that the roll changing time is shortened to less than 3 seconds. It effectively reduces downtime and is suitable for continuous and uninterrupted production lines.
Synchronous flexible winding method
The Breathable Film Winding Machine adopts "flexible synchronization" control during operation, and the angular velocity difference between the main reel and the spare reel is controlled within ±0.2rad/s to prevent excessive stretching or wrinkling of the material. This structure is particularly suitable for the stable winding of uneven thickness or composite film breathable film materials.
Low-loss material connection mode
Breathable Film Winding Machine is equipped with an automatic shearing device and a synchronous roll changing roller mechanism to automatically complete cutting and bonding without reducing speed. The length of material joint waste is controlled at ≤0.5m, saving 15%-20% of materials compared with the traditional robot roll changing method.
Can replace the original winding system
Breathable Film Winding Machine supports modular transformation, adapts to most breathable film equipment or cast film production lines, can directly replace the original backward winding unit, and supports docking with automatic feeding tracks and ERP systems. The maximum material width supports 2200mm, which improves the efficiency of the original production line by more than 30%.
1. Baby Diaper Film Rolls
Hengan Group applies the surface center winding machine to produce diaper backsheet film rolls with precise tension control, ensuring excellent roll formation and consistency for high-speed converting lines.
2. Adult Hygiene Pads Films
Windeed uses the machine to wind breathable films for adult care pads. The technology guarantees stable roll density, reducing production defects and enhancing downstream lamination efficiency.
3. Sanitary Napkin Laminates
Qifeng integrates this winding system for sanitary napkin laminated films, achieving uniform tension and clean roll edges that improve product quality and ease of use in further processing.
4. Eco-friendly Degradable Films
Zhaoan Tech employs the equipment to wind biodegradable films. The precise surface and center winding design preserves film integrity, ensuring reliable performance for sustainable packaging solutions.
5. Household Hygiene Covers
Huahan leverages the machine for protective household hygiene films such as table covers. The winding process delivers even and compact rolls, ensuring stable packaging and transport.
6. Mattress Protector Films
Zhuangda Material applies this machine to mattress protector films. The high-speed system provides consistent roll hardness, improving usability in large-scale converting.
7. Functional Packaging Rolls
Quanta-gold Boat uses the machine to wind functional packaging films, ensuring smooth edges and roll stability, which supports precision printing and downstream applications.
8. Nonwoven Composite Films
Xinsanhe integrates the winding machine into its nonwoven composite film lines. The uniform roll buildup enhances efficiency for hygiene and industrial applications.
9. Protective Workwear Materials
Xinghuo applies this equipment to wind protective film laminates for PPE. The machine’s tension control prevents material stretching, maintaining strength and reliability.
Surface Center Winding Machine Care and Maintenance
Regular inspection of drive system
The servo motor and drive module need to be checked for operating status every month, including temperature rise monitoring, bearing lubrication and overload protection testing. It is recommended to replace the motor shaft end grease every 2000 hours to avoid response delays or torque abnormalities due to high temperature operation.
Control system software update and log record
SIEMENS SIMATIC controllers are recommended to perform data backup and firmware upgrades through authorized software every quarter to ensure stable operation of the control program. The operation log is exported once a week to analyze the roll change frequency, speed fluctuations and abnormal shutdown records to improve management efficiency.
Maintenance of pressure rollers and knives
The surface hardness and elasticity changes of the bonding pressure roller should be tested every 500 hours of use to prevent uneven bonding due to aging; the automatic scissors need to be sharpened or the blades replaced every 1000 cuts to ensure that the cutting surface is neat and without burrs.
Calibration of the correction and sensing system
It is recommended to perform a comprehensive calibration of the correction sensor, position encoder and tension feedback device every six months. The calibration standard refers to the ±0.1mm accuracy range, and uses standard coils as test samples to ensure sensitive correction response and accurate tension sensing.
