High Speed Slip Differential Shaft Slitting Machine
Category：Slitting
Online Defect Detection System
Automatic Unload System
Pneumatic Circular Knife Slitting Method
-
+86-18000876276 WhatsApp

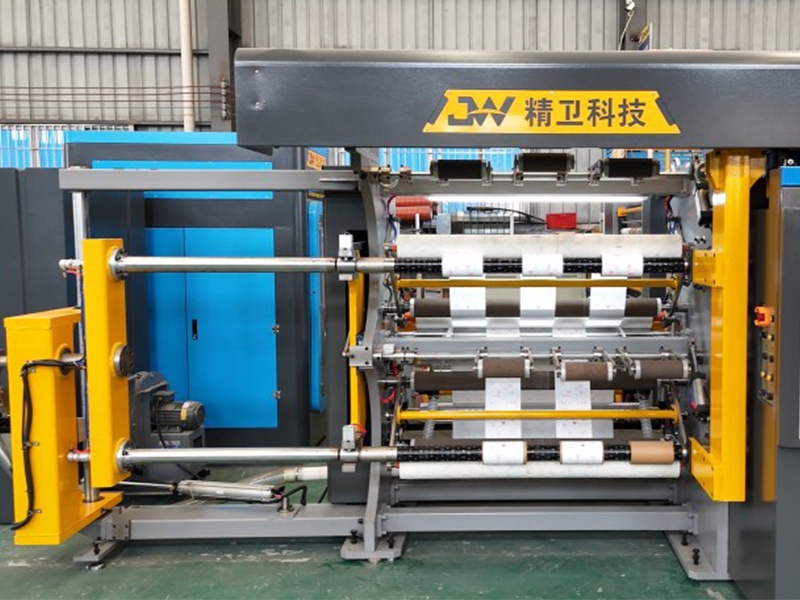

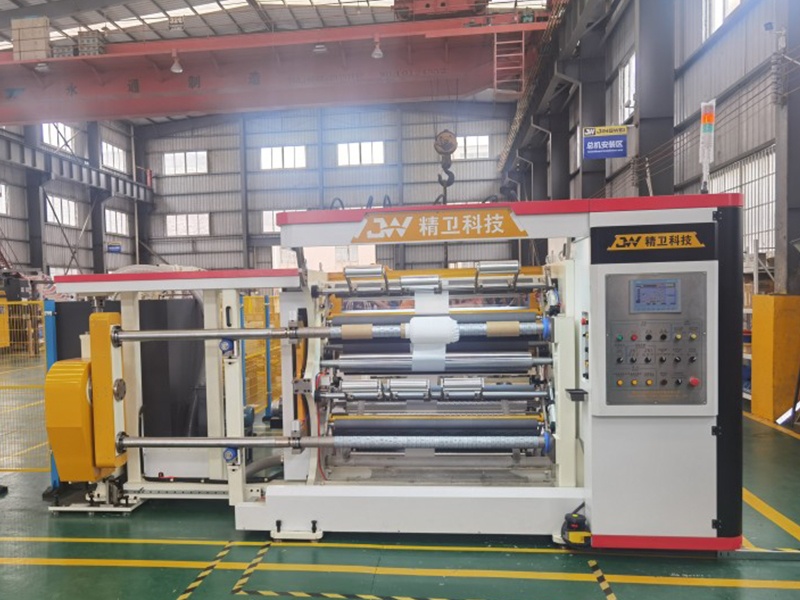

The main components of Film Slitters include: automatic unwinding mechanism, CCD correction system, servo-driven slitting module, pneumatic circular knife assembly, slip axis winding system, tension dancing roller, central control PLC and touch screen interface, etc. The overall appearance adopts a closed sheet metal structure, and the shell coating is rust-proof and sprayed. It is a small industrial equipment used to accurately cut and rewind large rolls of plastic film, paper composite film, non-woven fabrics and other materials according to the specified width.
High Speed Slip Differential Shaft Slitting Machine Parameter
| Model No. | Max Materials Width | Unwinding Dia. | Rewinding Dia. | Min Slitting Width | Max Slitting Width | Max Speed | Applicable Materials |
| JW-FQ1350HC-1000 | 1300mm | Φ1000mm | Φ1000mm | 50mm | 600mm | 600m/min | OPP BOPP CPP PE PET PVC NY PAPER NWF |
| JW-FQ1750HC-1000 | 1700mm | Φ1000mm | Φ1000mm | 50mm | 800mm | 600m/min | OPP BOPP CPP PE PET PVC NY PAPER NWF |
| JW-FQ2250HC-1000 | 2200mm | Φ1000mm | Φ1000mm | 50mm | 1000mm | 600m/min | OPP BOPP CPP PE PET PVC NY PAPER NWF |
| JW-FQ2550HC-1000 | 2500mm | Φ1000mm | Φ1000mm | 50mm | 1200mm | 600m/min | OPP BOPP CPP PE PET PVC NY PAPER NWF |
※Remarks: Other sizes of machines are available upon request
High Speed Slip Differential Shaft Slitting Machine Features
Intelligent control system
Film Slitters are equipped with Siemens SIMATIC motion controllers from Germany, centralized command management through integrated PLC, and a full set of SIEMENS servo drivers to achieve high-speed closed-loop control. During the operation of the equipment, automatic tension adjustment, one-button switching of recipes, and real-time error correction can be achieved to ensure cutting stability and repeatability.
Precision correction and material guiding system
Film Slitters detect film edges or printing lines in real time and automatically correct the material running path through the built-in high-sensitivity CCD correction system. The system response time is less than 0.02 seconds, and the correction accuracy is ±0.1mm, which effectively avoids slitting deviation and is particularly suitable for high-speed continuous slitting of high-demand pattern films and positioning films.
Highly adaptable winding technology

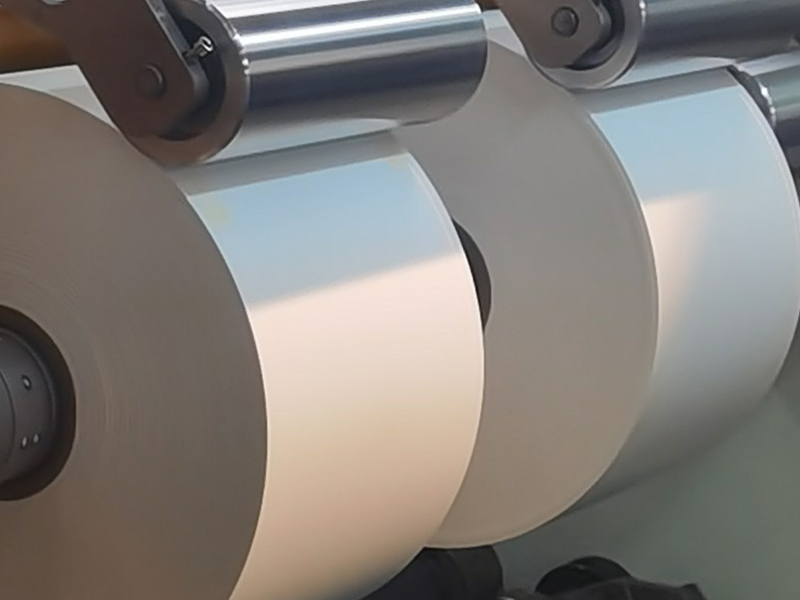

Film Slitters adopts a slip-axis low-tension winding system and supports a synchronous dual-axis independent control structure. The maximum winding diameter is Φ1000mm, and the minimum cutting width can be up to 50mm. Through the pressure difference adjustment system, it adapts to the dynamic tension requirements of different materials and thicknesses to ensure neat slitting edges and smooth winding without wrinkles.
High compatibility of multiple materials
Film Slitters can be applied to OPP, CPP, BOPP, PE, PET, PVC, NY, non-woven fabrics, paper and other materials. The maximum material width is 2500mm, and the thickness support range is from 12μm to 200μm, realizing efficient integrated slitting across industries and structures.
High-efficiency online processing configuration

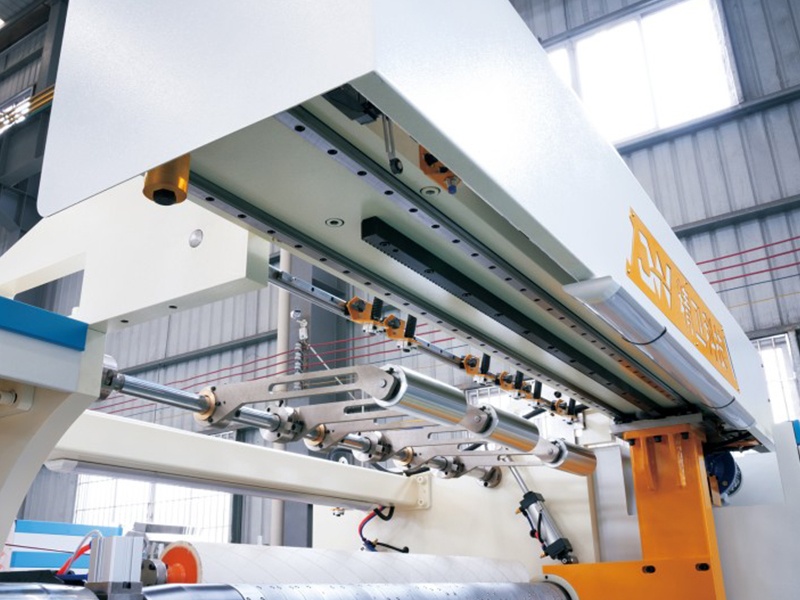

Film Slitters are equipped with an online edge material recovery system and a pneumatic circular knife slitting method, which can rewind and recycle edge materials in real time without affecting the main line speed, thereby improving material utilization. The addition of an automatic unloading system can shorten the roll change time by more than 30%, significantly improving operating efficiency.
1. Baby Diaper Films
Hengan Group utilizes the slitting machine for baby diaper films, guaranteeing accurate roll cutting and high production stability.
2. Elderly Care Pads Materials
Windeed applies the equipment to slit breathable materials for elderly hygiene pads, enhancing efficiency and reducing downtime.
3. Feminine Hygiene Films
Qifeng employs the slitter for sanitary napkin films, achieving excellent roll uniformity and edge quality.
4. Baby Pants Laminates
Xinqi uses the machine for laminated baby pants films, delivering consistent slitting accuracy.
5. Global Packaging Films
RKW integrates this slitting solution for flexible packaging films in hygiene products, serving global customers.
6. Outer Wrap Films
Haoyue applies the machine to process outer wrap films for feminine care products, ensuring high clarity and clean edges.
7. Healthcare Protective Films
HET relies on the slitter for medical protective films, producing reliable and compliant materials.
8. High-volume Hygiene Films
Avoteck employs the machine for large-scale hygiene film production, ensuring precision at high speed.
9. Specialty Film Solutions
Zhaoan Tech uses the slitting machine for specialty hygiene product films, supporting product diversification.
10. Household Hygiene Covers
Huahan applies this equipment to process protective covers for disposable household use, ensuring product durability.
11. Mattress Protector Films
Zhuangda Material leverages the slitting machine to create mattress protector films, ensuring high accuracy in roll widths.
12. Functional Laminates
Quanta-gold Boat integrates the machine into its functional laminate film production, enhancing adaptability across applications.
13. Tailored Hygiene Films
Kayson relies on the equipment for tailored hygiene film slitting, serving varied customer requirements.
14. Composite Laminated Rolls
Xinsanhe applies the slitter for composite laminated rolls, improving efficiency and roll smoothness.
15. Nonwoven Film Materials
Qihua uses this solution to slit nonwoven film materials for hygiene industries, ensuring consistent performance.
16. Special Laminates for Hygiene
Jinchang integrates the machine to process special laminated hygiene films, meeting high accuracy demands.
17. Protective Film Packaging
Xinghuo applies the equipment for protective hygiene packaging films, supporting industrial safety needs.
18. Certified by Industry Giants
The machine’s production processes have passed Kimberly-Clark and P&G system certifications, proving its compliance with international hygiene standards.
High Speed Slip Differential Shaft Slitting Machine Care and Maintenance
Slip shaft maintenance and tension system detection
The slip shaft is a high-precision power shaft. Its internal airbag should be pressure tested every month to ensure that the tension adjustment system responds consistently and avoid material deviation or uneven winding. When the service life exceeds 20,000 meters, the sleeve clearance should be checked. If tension fluctuations or noise occur, the internal components or airbag rubber rings should be replaced.
CCD correction lens and light source cleaning
As the core component of image recognition, the CCD system is recommended to clean the lens surface regularly every week, using dust-free cloth and special optical cleaning fluid to prevent dust from interfering with image recognition. At the same time, check whether the illumination of the LED cold light source is uniform. If the brightness is reduced, it should be replaced or corrected in time.
Tool wear detection and replacement mechanism

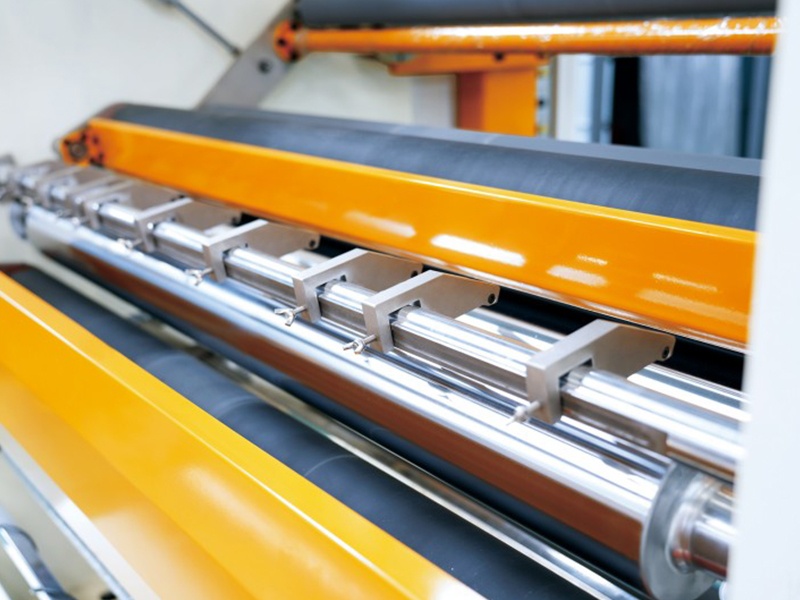

The circular knife is a high-speed rotating component. It is recommended to check the edge wear after running 80,000 meters of material. If there are problems such as cutting edge burrs, material breakage, abnormal cutting sound, etc., the tool should be replaced in time. The automatic positioning tool holder can be installed to improve the replacement efficiency and safety.
