Automatic High Speed Degradable Film Slitting Machine
Category：Slitting
Online Defect Detection System
Automatic Unload System
Pneumatic Circular Knife Slitting Method
-
+86-18000876276 WhatsApp

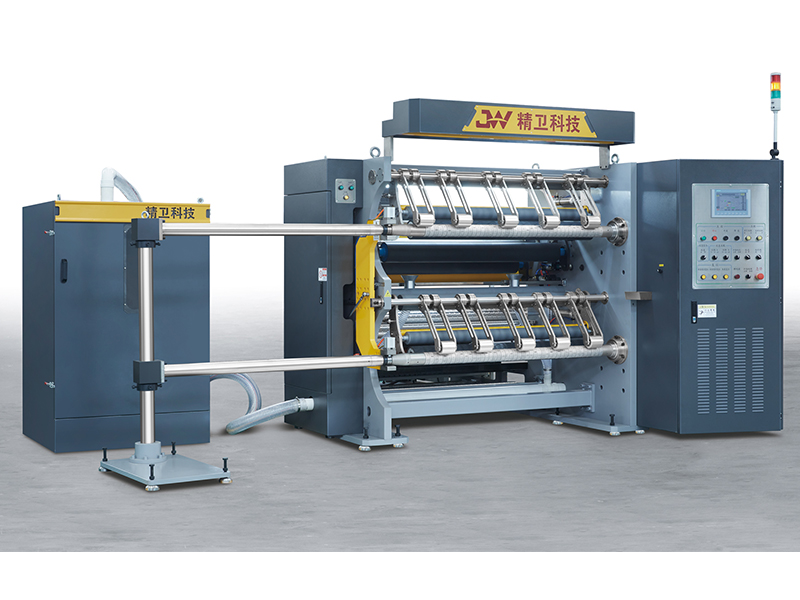

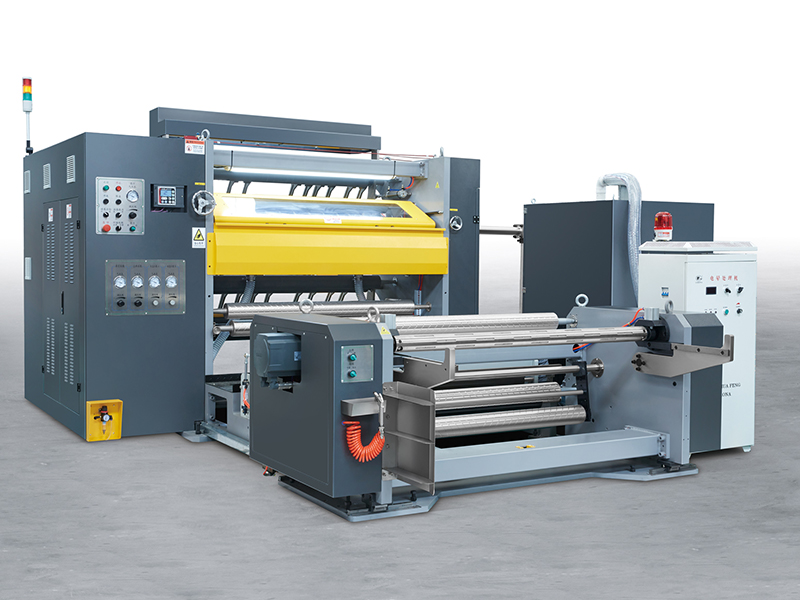

The appearance design of Auto Slitting Machine adopts a closed sheet metal cover, which is composed of the following main modules: fully automatic unwinding mechanism, imported CCD deviation correction system, servo-driven circular knife slitting module, slip axis winding unit, differential pressure material receiving roller, corona treatment unit, central control cabinet and touch screen operation interface. It is a fully automatic high-precision slitting equipment specially developed for new degradable film materials
Automatic High Speed Degradable Film Slitting Machine Parameter
| Model No. | Max Materials Width | Unwinding Dia. | Rewinding Dia. | Min Slitting Width | Max Slitting Width | Max Speed | Applicable Materials |
| JW-FQ1350JJ-1000 | 1300mm | Φ1000mm | Φ1000mm | 50mm | 600mm | 600m/min | Degradable Film |
| JW-FQ1750JJ-1000 | 1700mm | Φ1000mm | Φ1000mm | 50mm | 800mm | 600m/min | Degradable Film |
| JW-FQ2250JJ-1000 | 2200mm | Φ1000mm | Φ1000mm | 50mm | 1000mm | 600m/min | Degradable Film |
| JW-FQ2550JJ-1000 | 2500mm | Φ1000mm | Φ1000mm | 50mm | 1200mm | 600m/min | Degradable Film |
※Remarks: Other sizes of machines are available upon request
Automatic High Speed Degradable Film Slitting Machine Features
Intelligent drive control · High automation

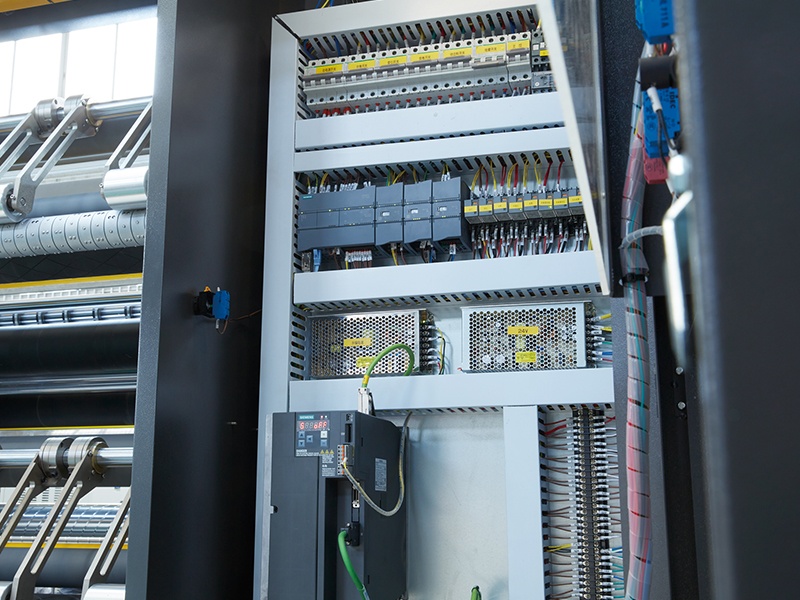

The entire control system of Auto Slitting Machine adopts German SIEMENS SIMATIC motion controller to realize servo closed-loop automatic speed regulation, automatic deviation correction, and automatic tension balance, with an operating speed of up to 600m/min. The whole machine is operated by a centralized PLC touch screen system, which can pre-store 30 sets of slitting recipes and switch with one button, saving manual setting time.
Ultra-precision material guiding · CCD correction system

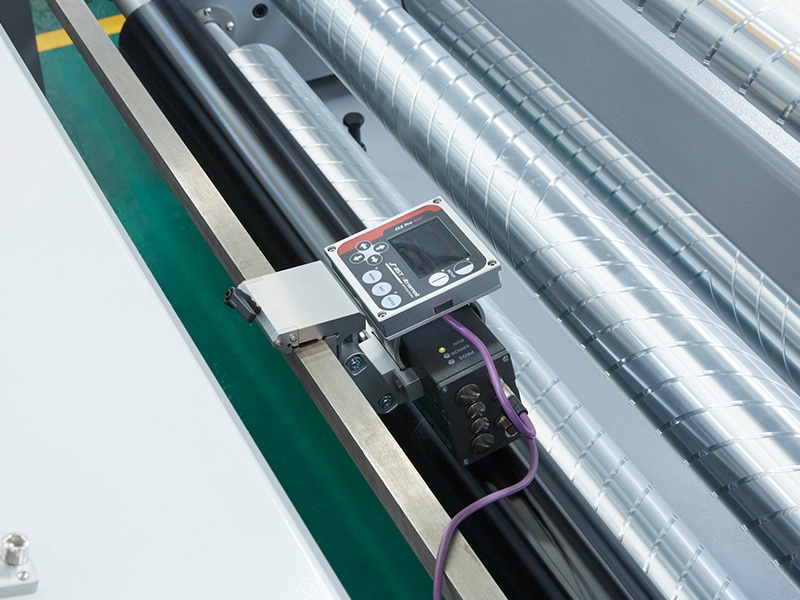

The Auto Slitting Machine is equipped with an imported CCD image tracking system to monitor the film edge or alignment mark in real time, and can automatically fine-tune the film material path. The correction accuracy reaches ±0.1mm, ensuring that the cutting edges are neat and not offset under high-speed operation. It is especially suitable for sanitary product films with high requirements for pattern positioning, such as adhesive-backed films, water-absorbing core layer release films, etc.
Low-tension slip winding · High-uniformity finished products

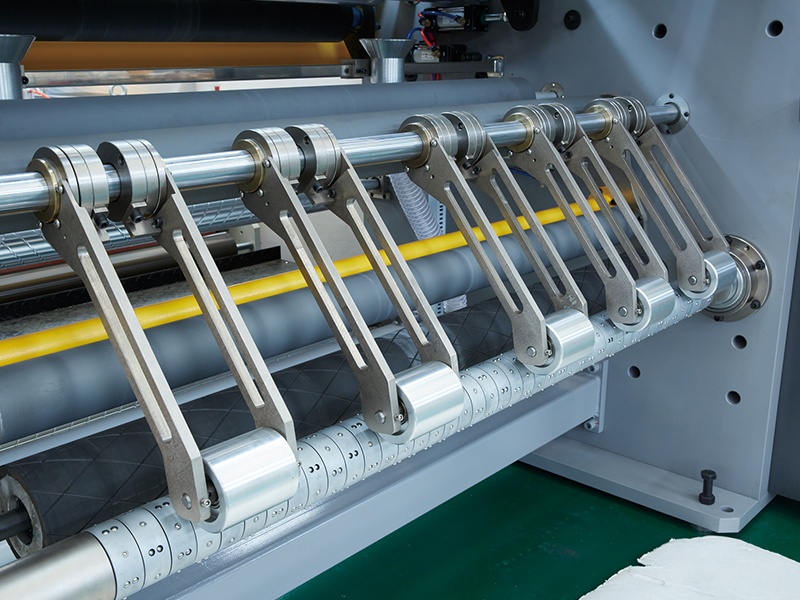

The Auto Slitting Machine adopts a slip shaft structure for winding, combined with a material-receiving roller with automatic pressure difference control, which can achieve neat winding under low tension for 12μm-50μm degradable film materials, with a maximum winding diameter of Φ1000mm. This structure avoids film stretching deformation or deflection, and is suitable for flexible processing requirements of materials of different thicknesses.
Online trimming and edge material recycling · Reduce raw material waste
Auto Slitting Machine integrates online edge material trimming and synchronous recycling system, and collects edge materials by vacuum adsorption or tension winding after cutting off the film edge. It is especially critical for high-cost environmentally friendly film materials, which can control the edge material loss rate within 3%, improve material utilization rate, and optimize overall production costs.
Corona treatment device · Coating and composite pre-treatment guarantee
Built-in high-efficiency corona treatment unit, support surface corona intensity adjustment, increase the surface tension of film material to ≥38dyn/cm, suitable for subsequent deep processing such as silicon coating, composite, printing, etc. This function is particularly suitable for the pre-treatment of degradable film materials in the production line to ensure the adhesion of the subsequent process.
Nanjing, China | Kimberly-Clark Adult Diaper Adhesive Film Project
At Kimberly-Clark Nanjing Base, Auto Slitting Machine is used for high-speed slitting of PLA+PE composite environmentally friendly film materials. The customer selected the JW-FQ1750JJ-1000 model, with a minimum cutting width of 50mm and a maximum cutting width of 800mm. The daily slitting film output reached 180,000 meters. The equipment ran stably for 24 hours, meeting its supply chain needs for adult diaper adhesive films.
Berlin, Germany | Hartmann Medical Gasket Degradable Film Project
Hartmann Group used the Auto Slitting Machine to precisely slit PBAT+PLA medical gasket films into 100mm wide sections at its Berlin factory in Germany, and used them for hospital isolation pads, incontinence care products, etc. The Auto Slitting Machine is equipped with a pattern positioning system, with an error control within ±0.1mm to ensure that there is no misalignment in the automatic bonding process.
Minnesota, USA | Procter & Gamble Baby Diaper Film Slitting
P&G purchased Auto Slitting Machine in Minnesota, USA, for slitting its new generation of biodegradable film adhesive substrates, adapted to PE/PBAT co-extrusion structure, and selected JW-FQ2250JJ-1000 model, with a working speed of 600m/min. The output per shift exceeds 20 tons, and it is equipped with an automatic unloading system to greatly reduce downtime.
Shizuoka, Japan | Unicharm Pet Pad Film Slitting
Unicharm introduced in the Shizuoka factory for the PE film slitting process of its environmentally friendly pet urine pad products. The finished film roll is required to have no edge hair and no indentation. The customer uses a circular knife slitting method and is equipped with an online defect detection device to achieve simultaneous monitoring of pinholes and printing defects.
Automatic High Speed Degradable Film Slitting Machine Care and Maintenance
Servo drive system regular inspection
The whole machine operation depends on multiple groups of SIEMENS servo drives to coordinate operations. It is recommended to check whether the cooling fan is operating normally and whether the surface temperature of the drive exceeds the safety threshold every 300 hours of operation. If there is a drive alarm or current instability, check the power supply fluctuation or replace the fan.
Cleaning of CCD lens and light source for correction
The CCD correction system needs to keep the optical components clean and transparent. It is recommended to use dust-free cloth and optical alcohol to clean the lens surface after weekly shutdown to avoid dust blocking and affecting the recognition accuracy. Check the brightness of the light source every month. If the illumination is significantly attenuated, it is recommended to replace the LED component.
Air pressure detection and replacement of differential axis
The internal tension distribution of the differential axis is controlled by air pressure fine-tuning. It is recommended to check whether the air pressure is maintained at the set value every month. If problems such as slippage, wrinkles, and jams are found during winding, the rubber airbag should be disassembled to check whether it is leaking, and the air ring and sleeve should be replaced in time to ensure uniform winding.
Daily inspection and precise adjustment of cutting tools

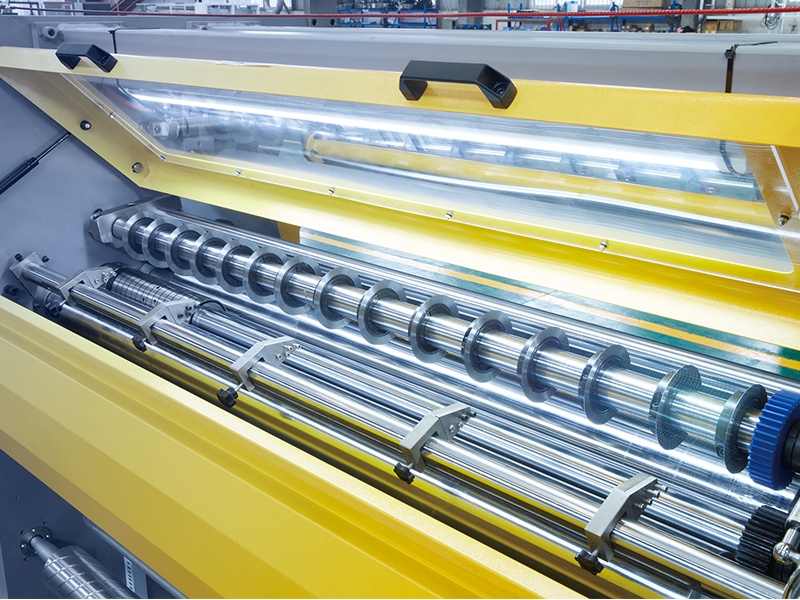

Circular knives or flat knives are core parts for high-speed operation. It is recommended to check the wear of the cutting edge after running 100,000 meters of material. If burrs or tears appear on the cutting surface, the blade should be re-grinded or replaced. Keeping the knife holder balanced and the pressure constant is an important prerequisite for ensuring the neatness of the cutting edge.
Corona treatment device maintenance
The corona device needs to regularly check whether the discharge electrode has carbon deposits. It is recommended to clean the electrode area every two weeks to prevent uneven corona from causing overheating or breakdown of the film surface. The corona intensity controller also needs to detect whether the voltage output is stable to avoid degradation of coating performance.
