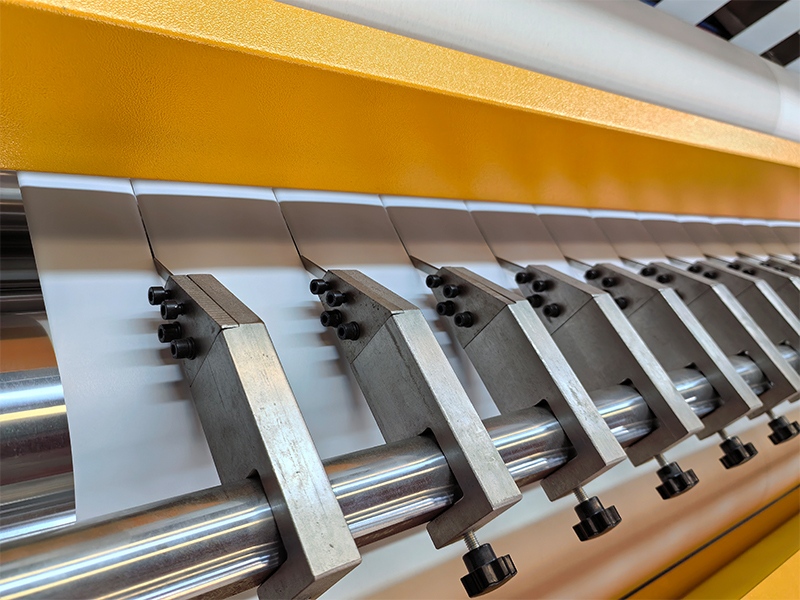

The Slitting Machine with 6-Inch Slip Differential Winding Shaft is a roll to roll converting system used to cut wide material rolls into multiple narrow rolls. The machine integrates unwinding, slitting, tension control, and rewinding sections within one production structure. Materials are fed from a large master roll through guide rollers and cutting units where multiple blades divide the material into narrower widths. The processed strips are then rewound simultaneously onto multiple cores through the slip differential winding shaft system.

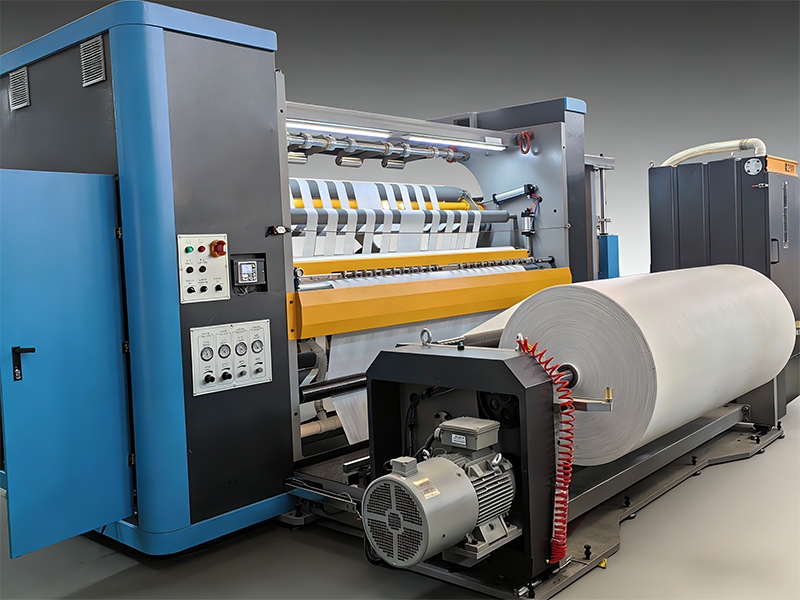

The machine layout allows operators to load the master roll at the unwinding section and monitor cutting operations from the front control area. The frame structure provides clear access to the cutting unit and rewinding shafts, allowing technicians to observe material movement and cutting conditions during operation. The control panel centralizes machine operation so operators can manage production parameters and monitor machine status during continuous slitting processes.

High Speed

The slitting machine supports continuous roll processing with a maximum operating speed of 600 meters per minute, allowing large material rolls to be converted efficiently. This speed level enables high output production while maintaining stable material movement through the machine. The roller transmission and cutting system operate in coordination so that materials can move smoothly across the slitting section without interruption. Even when processing wide materials up to 2500 millimeters, the system can maintain stable running conditions during high speed operation. This speed capability allows large master rolls to be processed quickly into multiple finished rolls during industrial production cycles.

Wide Width

The machine supports a broad range of material widths, with maximum material width configurations ranging from 1300 millimeters to 2500 millimeters depending on the model. This width capacity allows large master rolls to be processed in a single slitting cycle. The cutting section can divide these wide rolls into narrower strips while maintaining stable alignment during the slitting process. The system also supports minimum slitting widths down to 50 millimeters, enabling precise conversion of materials into smaller finished rolls. This wide processing range allows the machine to handle different roll dimensions used in industrial material converting operations.

Large Diameter

The equipment supports large roll handling capability in both the unwinding and rewinding sections. The technical data shows that the maximum unwinding diameter and rewinding diameter can reach 1000 millimeters, allowing large master rolls to be processed without frequent roll replacement. Handling larger roll diameters helps reduce production downtime and improves efficiency in high volume converting operations. Stable roll support ensures that the material remains aligned during slitting and rewinding. Processing large diameter rolls also allows longer material lengths to be converted in a single production cycle.

Stable Control

The machine integrates a centralized control system designed for stable motion management during high speed slitting operations. The system is driven by SIMATIC motion control technology and servo drives, allowing coordinated control of rollers, cutting units, and rewinding shafts. This control structure ensures stable material transport and accurate cutting positioning during operation. The coordinated control system helps maintain consistent machine performance even when processing wide materials and large roll diameters. Stable control ensures that the machine operates reliably during continuous production cycles where long material rolls are processed.

Dual Winding

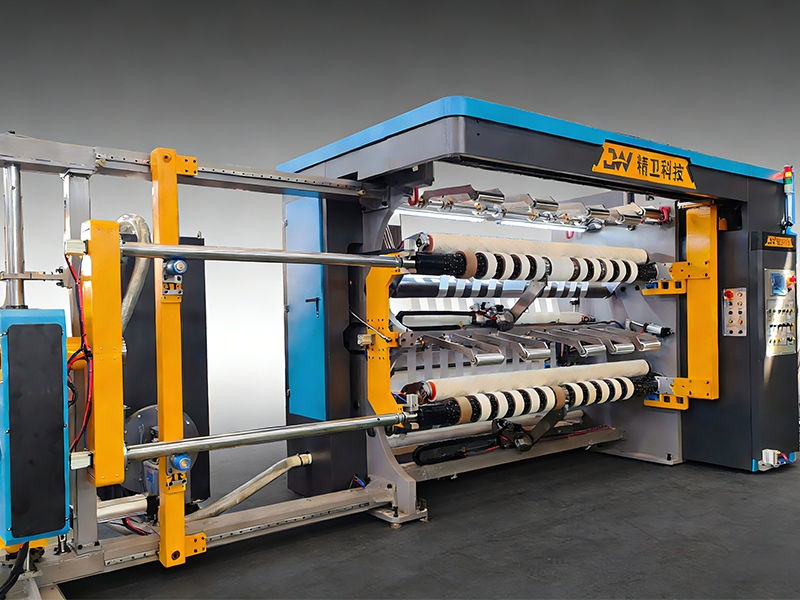

The equipment supports a dual mode winding structure that includes integral and independent press roll configurations. This design allows the machine to rewind multiple narrow rolls simultaneously while maintaining stable roll formation. The slip differential winding shaft system distributes tension evenly across each rewound roll so that each strip maintains consistent winding pressure. This ensures that finished rolls maintain uniform structure even when different strip widths are produced in the same slitting cycle. The winding system allows multiple finished rolls to be produced from one master roll during continuous converting operations.
