Single Shaft High Speed Slitting Machine
Category：Slitting Machine
Online Defect Detection System
Pneumatic Circular Knife Slitting Method
-
+86-18000876276 WhatsApp
Polyester Film Slitting Machine adopts heavy steel structure frame, sprayed with high-strength anti-corrosion coating, with automatic unwinding unit at the front end and tension control system, high-precision circular knife cutting component in the middle section, automatic rewinding mechanism at the end, 7-inch or 10-inch industrial touch screen on the panel, equipped with PLC system control, it is the core equipment of modern film slitting process.
Single Shaft High Speed Slitting Machine Parameter
| Model No. | Max Materials Width | Unwinding Dia. | Rewinding Dia. | Min Slitting Width | Max Slitting Width | Max Speed | Applicable Materials |
| JW-FQ1350DZ-1000 | 1300mm | Φ1000mm | Φ1000mm | 28mm | 1285mm | 500m/min | OPP BOPP CPP PE PET PVC NY PAPER NWF |
| JW-FQ1750DZ-1000 | 1700mm | Φ1000mm | Φ1000mm | 28mm | 1685mm | 500m/min | OPP BOPP CPP PE PET PVC NY PAPER NWF |
| JW-FQ2250DZ-1000 | 2200mm | Φ1000mm | Φ1000mm | 28mm | 2185mm | 500m/min | OPP BOPP CPP PE PET PVC NY PAPER NWF |
| JW-FQ2550DZ-1000 | 2500mm | Φ1000mm | Φ1000mm | 28mm | 2485mm | 500m/min | OPP BOPP CPP PE PET PVC NY PAPER NWF |
※Remarks: Other sizes of machines are available upon request
Single Shaft High Speed Slitting Machine Features
High-precision cutting system

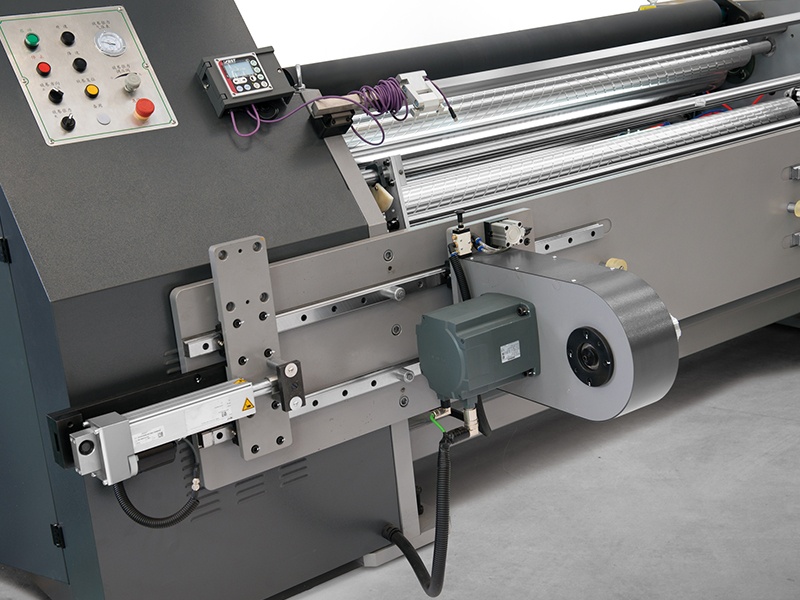

Polyester Film Slitting Machine adopts imported alloy steel circular knife and pneumatic slitting structure, with slitting accuracy within ±0.1mm. With servo motor control, it can automatically adjust the knife position according to the change of material tension to ensure neat incision and no burrs, especially suitable for polyester film with thickness in the range of 12μm~100μm.
Multiple unwinding/rewinding configurations
Polyester Film Slitting Machine supports dual-axis unwinding and dual-axis rewinding configurations, with a maximum unwinding diameter of 800mm and a maximum rewinding diameter of 600mm. The unwinding structure is equipped with an air shaft and an automatic deviation correction system, which supports online edge material collection and meets the cutting requirements of different production lines and product sizes.
Touch operation and intelligent control system

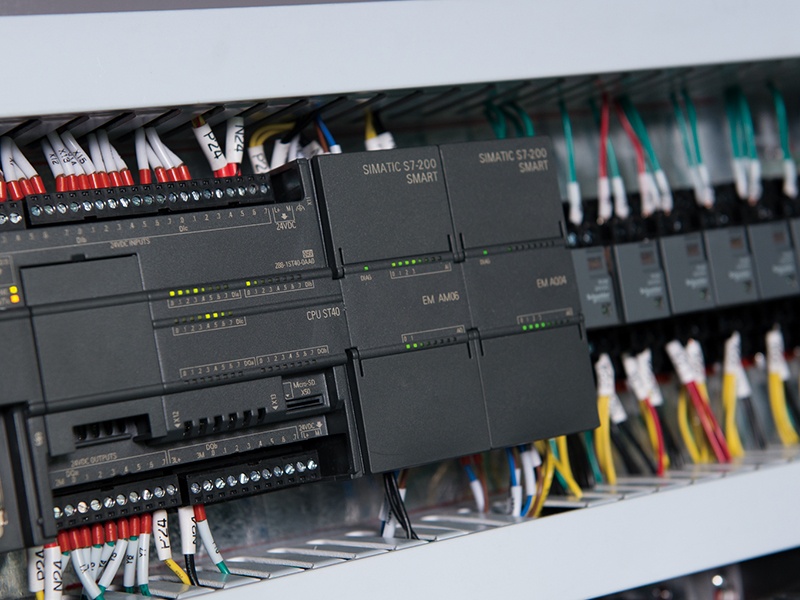

Polyester Film Slitting Machine is equipped with Siemens or Mitsubishi PLC program control, equipped with a 7-inch/10-inch touch human-machine interface, supports Chinese and English interface switching, users can customize cutting length, tension value, acceleration and speed curve, and has 100 sets of parameter memory function, which is convenient for fast switching of product specifications.
Stable and durable mechanical structure
Polyester Film Slitting Machine adopts Q235 high-strength steel structure as a whole, the main drive shaft is tempered, and the key parts are equipped with SKF bearings and Taiwan imported guide rails to ensure long-term continuous operation without deformation, with a service life of more than 8 years, suitable for 24-hour uninterrupted industrial applications.
Applied in PET packaging film manufacturing plants
Polyester Film Slitting Machine is widely used in professional PET film manufacturing companies, such as Toyobo, DuPont Teijin Films and other brand factories, to slit large rolls of original film into small rolls of different widths for subsequent printing and laminating processes. The equipment can flexibly adjust the cutting width according to customer orders to improve order delivery efficiency.
Applied in solar backplane film slitting production line
In the material supply chain of well-known solar module manufacturers such as JinkoSolar and Trina Solar, Polyester Film Slitting Machine is used for precise slitting of solar backplane PET film. Its highly stable tension control can avoid wrinkling or dimensional errors on the backplane and ensure the quality of module packaging.
Applied in medical coating film plants
Well-known medical consumables suppliers such as Sumitomo Chemical and 3M Medical use Polyester Film Slitting Machine to perform high-clean slitting of medical protective films and breathable films. The equipment supports dust-free modification solutions and is compatible with clean workshop standards (Class 10,000), suitable for pharmaceutical packaging, medical patches and other fields.
Application in functional electronic film material factories
In electronic material manufacturers such as LG Chem and SK Innovation, Polyester Film Slitting Machine is used for slitting of electronic polyester films such as ITO film, polarizing film, and diffusion film, which can ensure that the film surface is scratch-free and the size is stable, and is used in the field of high-end liquid crystal display.
Single Shaft High Speed Slitting Machine Care and Maintenance
Daily cleaning and lubrication maintenance
Before and after the operation of the Polyester Film Slitting Machine, the surface of the slitting knife seat, the transmission chain and the guide roller should be cleaned regularly to prevent the accumulation of polyester film dust. After the daily operation, the operator needs to clean the spindle with a dust-free cloth and inject special mechanical lubricating grease into each lubrication point (such as the spindle bearing and the cylinder slide rail) to maintain smooth operation.
Regular inspection and replacement of accessories
It is recommended to check the blade wear after every 200 hours of operation, and replace the severely worn blade in time to maintain cutting accuracy. At the same time, check the feedback sensitivity of the tension control sensor and the PLC response speed every month to ensure that the automatic adjustment system is accurate and effective.
Safety inspection of electrical system
Perform a comprehensive inspection of the equipment's electrical control box every quarter, focusing on the tightness of the wiring terminals, the operating temperature of the power supply voltage regulator module, and the motor drive module to prevent aging and looseness from causing failures. If abnormal vibration or abnormal current is found, the machine should be stopped immediately for investigation.
Software and parameter system backup
The operating system supports the USB disk parameter backup function. It is recommended to perform parameter backup after each adjustment of the Polyester Film Slitting Machine so that it can be quickly restored in case of misoperation or system reset. Regularly updating the PLC program (provided by the manufacturer) can improve equipment compatibility and computing efficiency.
