Non-Woven Fabric Slitting Machine High Speed Slitting Machine
Category：Slitting Machine
Online Defect Detection System
Metal Probe Detection
Visual Observation Light Box
-
+86-18000876276 WhatsApp

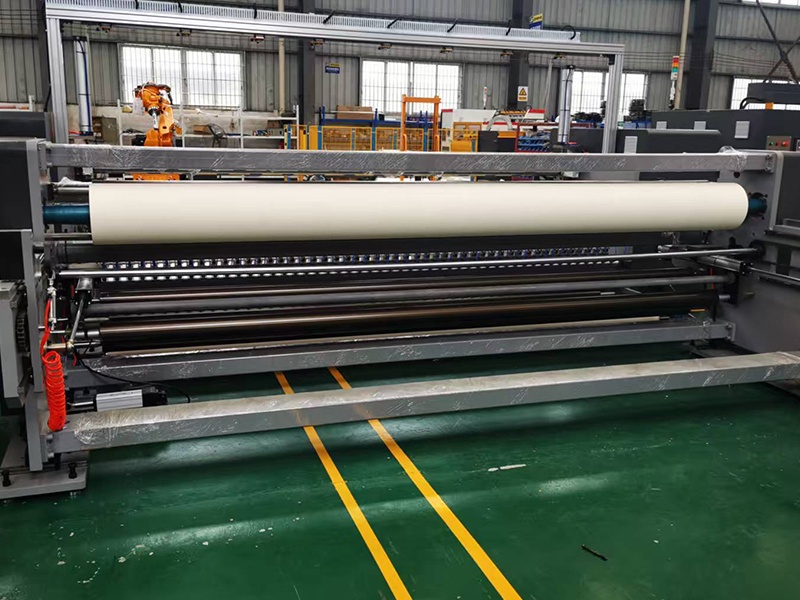

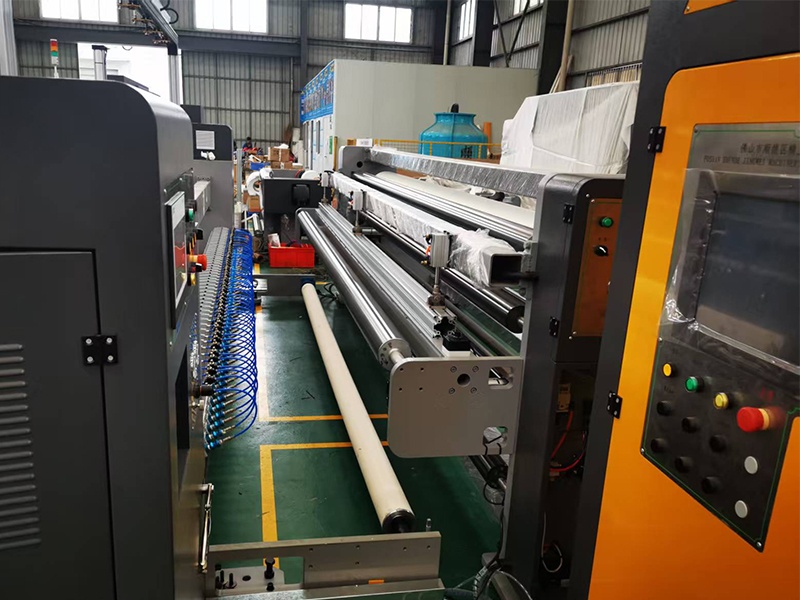

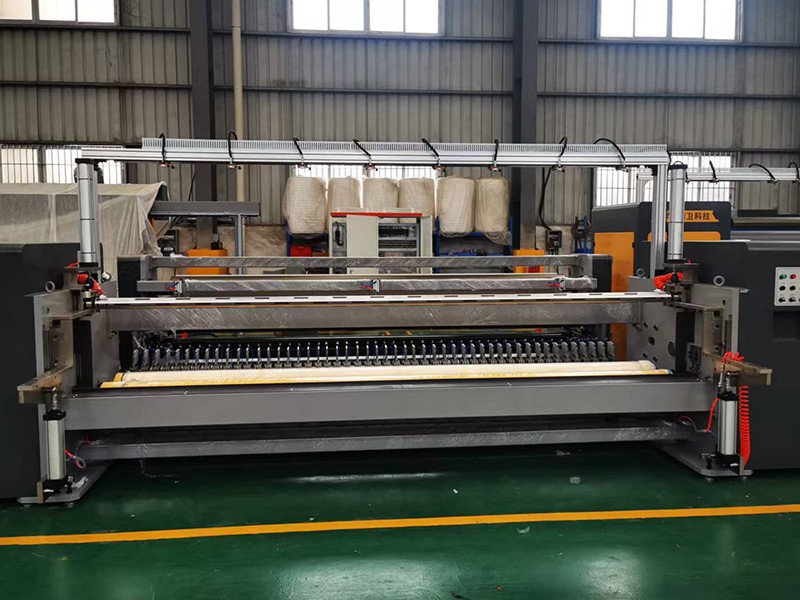

Film Slitting Machine is supported by a high-strength welded steel structure and sprayed with a corrosion-resistant coating on the surface. It mainly includes: automatic unwinding unit, CCD correction system, high-speed circular knife slitting module, surface double-roller winding system and intelligent electronic control panel. It is suitable for industrial-grade continuous slitting of large roll diameter and high-strength materials. It is one of the core equipment for modern sanitary materials and packaging materials processing.
Non-Woven Fabric Slitting Machine High Speed Slitting Machine Parameter
| Model No. | Max Materials Width | Unwinding Dia. | Rewinding Dia. | Min Slitting Width | Max Slitting Width | Max Speed | Applicable Materials |
| JW-FQ2250WF-1500 | 2200mm | Φ1500mm | Φ1000mm | 50mm | 2185mm | 300m/min | Hot Air Nonwoven Fabric |
| JW-FQ3850WF-1500 | 3800mm | Φ1500mm | Φ1000mm | 50mm | 3650mm | 300m/min | Hot Air Nonwoven Fabric |
※Remarks: Other sizes of machines are available upon request
Non-Woven Fabric Slitting Machine High Speed Slitting Machine Features
Precision control system: German SIEMENS core technology
Film Slitting Machine adopts German SIEMENS high-end SIMATIC motion controller to achieve full-line intelligent centralized control. The system ensures that the equipment maintains a cutting accuracy of ±0.2mm at a running speed of 300m/min through integrated bus architecture and high-frequency response signal processing, which is suitable for lightweight elastic materials such as hot air non-woven fabrics.
Efficient servo drive: fast and accurate dynamic response
The entire drive system uses German SIEMENS servo control module and drive motor, with continuous speed regulation capability of 0-300m/min. The acceleration time can be ≤3 seconds, and the shutdown error is controlled within 1%, which is suitable for stable and efficient operation in scenarios where multiple specifications of orders are frequently switched.
Stable correction device: CCD linear array automatic tracking
Film Slitting Machine is equipped with imported CCD visual correction system, which monitors the edge deviation of materials in real time. The correction response time is less than 100ms and the maximum correction accuracy is ±0.1mm. The system supports a variety of edge recognition algorithms, which is particularly suitable for the production environment of medical and health materials with high requirements for edge positioning.
Surface double-roller winding: adapted to the characteristics of flexible materials

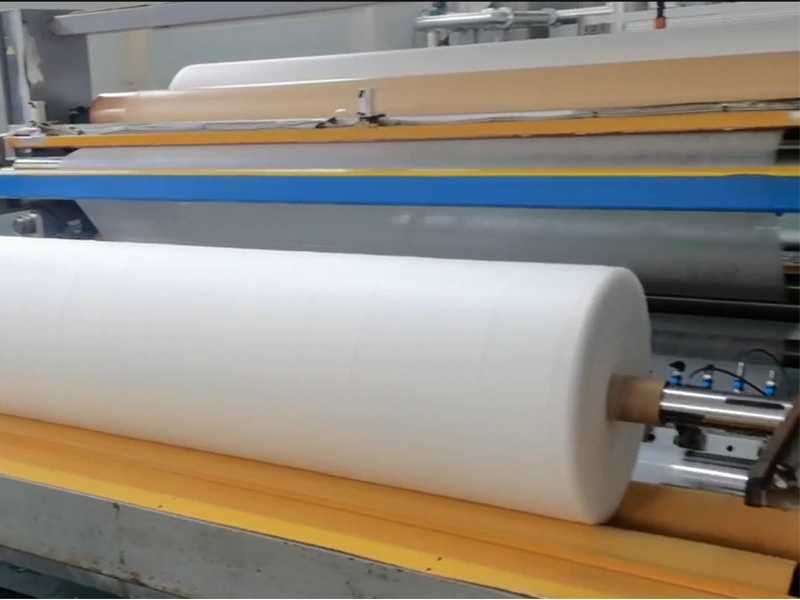

Film Slitting Machine adopts surface double-roller friction winding method, which supports a maximum winding diameter of 1000mm, suitable for hot air non-woven fabrics with low tension and easy wrinkling on the surface. The system can set the automatic compensation curve of winding pressure and roll diameter growth to achieve consistent material tightness and smooth winding without indentation.
Online trimming and edge material recycling: green and environmentally friendly
It has the functions of edge trimming and waste material synchronous recycling. Through the vacuum guide and collection fan system, it ensures that the edge material is not broken and entangled, and improves the consistency of edge quality. At the same time, the edge material can be directly fed into the reuse system to help customers reduce the material waste rate by more than 12%.
Applied to Guangdong Haoyue Care Products Factory
In Guangdong Haoyue's sanitary napkin and baby diaper production lines, Film Slitting Machine is used for precision slitting of hot air non-woven fabrics. The CCD deviation correction system of the equipment ensures accurate alignment of materials, improves the yield of finished products, and helps Haoyue achieve large-scale automated continuous processing.
Applied to Nobel Hygiene Pvt Ltd. in India
Nobel Hygiene is a large adult diaper manufacturer in India. It purchases our Film Slitting Machine for slitting breathable bottom film and non-woven surface layer, and pays special attention to the cutting stability and neatness of the Film Slitting Machine on wide-width materials.
Applied to Sanita Consumer Products in Egypt
The Sanita factory mainly produces pet urine pads and toilet paper products. The Film Slitting Machine, in conjunction with the online metal probe detection system, provides reliable protection for slitting the easily contaminated composite hot air cloth, effectively avoiding the risk of metal residues in production, and meeting local safety standards.
Applied to Unicharm's production base in Vietnam
Unicharm's factory in Vietnam introduced Film Slitting Machine for fine slitting of raw materials for baby diapers. Thanks to the high-speed and precise control of the servo system, Unicharm's output per shift increased by 18%, and the performance of the equipment was highly recognized by the company's engineering department.
