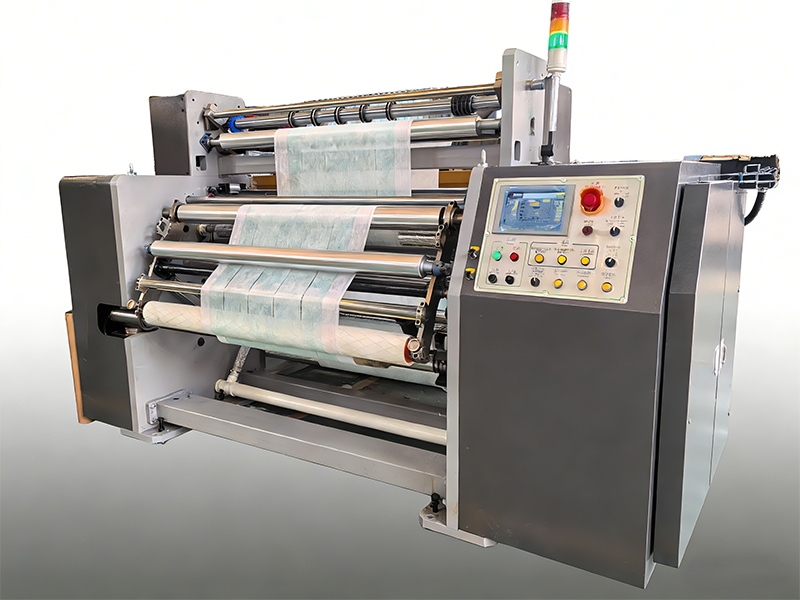

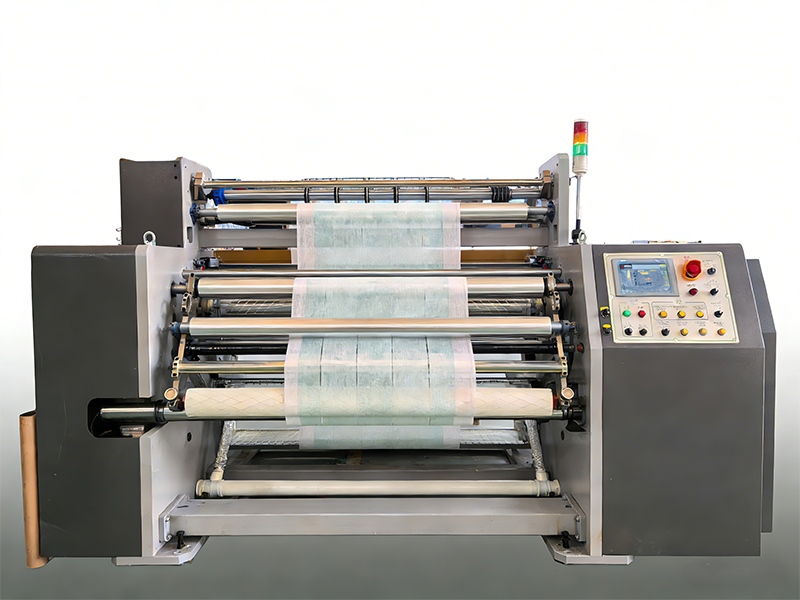

High-Speed Single-Shaft Slitting Machine Cfor Non-Woven Fabric

High-Speed Single-Shaft Slitting Machine Cfor Non-Woven Fabric

Category:Slitting Machine

Optional Device(s):
Online defect detection system
PRODUCTS DESCRIPTION

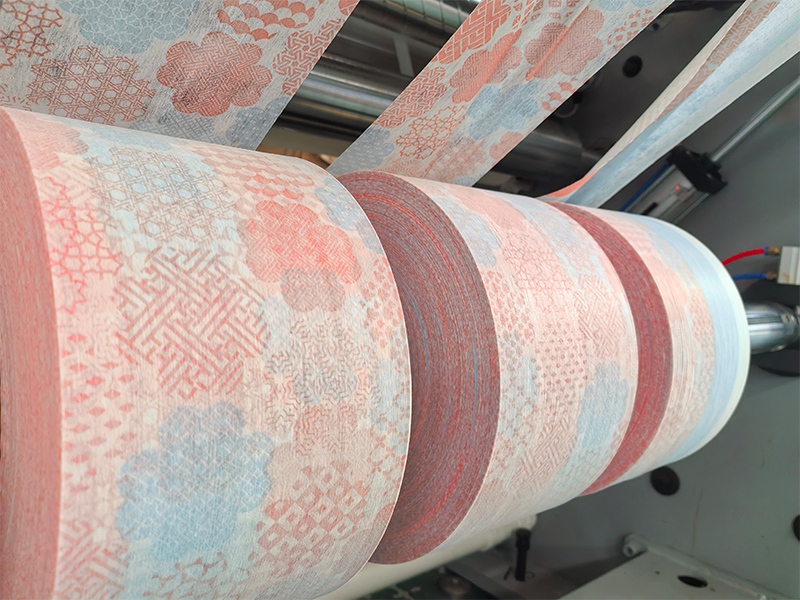

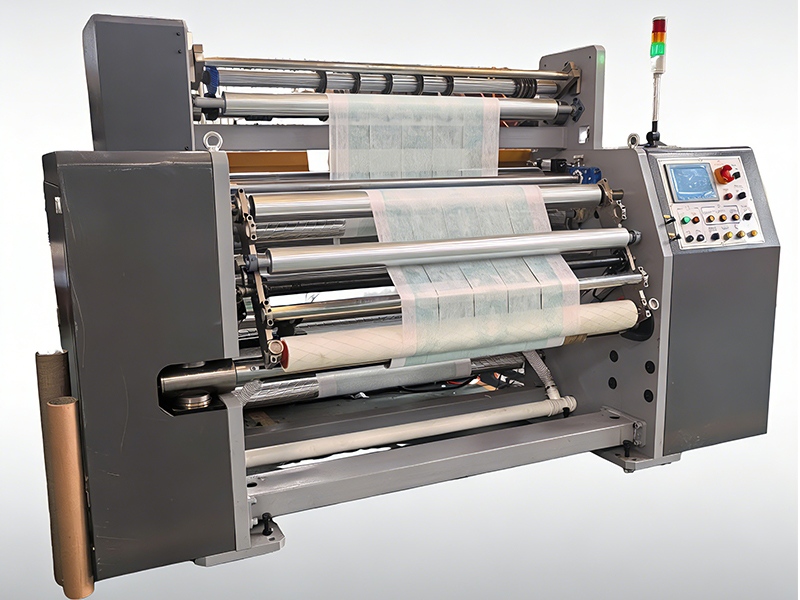

The High Speed Single Shaft Slitting Machine for Non Woven Fabric is an industrial converting system designed to slit wide master rolls into multiple narrow rolls with controlled alignment and stable winding structure. The machine processes materials such as non woven fabrics, PE film, OPP film, BOPP film, CPP film, PET film, PVC film, nylon film, and paper. During operation, the original roll is unwound and guided through the slitting unit where circular knives divide the material into several strips before rewinding onto a single shaft.


From the operator perspective, the machine provides a stable production platform where wide roll materials can be converted into multiple finished rolls in a single operation. The integrated control interface allows operators to monitor running speed, web alignment, and winding status. With a maximum slitting speed reaching 500 meters per minute and material widths up to 2500 millimeters, the equipment supports continuous industrial production while maintaining smooth roll surfaces and stable roll structures.

High-Speed Single-Shaft Slitting Machine Cfor Non-Woven Fabric Parameter

Model No.Max Materials WidthUnwinding Dia.Rewinding Dia.Min Slitting WidthMax Slitting WidthMax SpeedApplicable Materials
JW-FQ1350DZ-10001300mmΦ1000mmΦ1000mm28mm1285mm500m/minNWF PE OPP BOPP CPP   PET PVC NY PAPER
JW-FQ1750DZ-10001700mmΦ1000mmΦ1000mm28mm1685mm500m/minNWF PE OPP BOPP CPP   PET PVC NY PAPER
JW-FQ2250DZ-10002200mmΦ1000mmΦ1000mm28mm2185mm500m/minNWF PE OPP BOPP CPP   PET PVC NY PAPER
JW-FQ2550DZ-10002500mmΦ1000mmΦ1000mm28mm2485mm500m/minNWF PE OPP BOPP CPP   PET PVC NY PAPER

※Remarks: Other sizes of machines are available upon request



High-Speed Single-Shaft Slitting Machine Cfor Non-Woven Fabric Features

High Speed

The equipment supports high efficiency production with a maximum running speed reaching 500 meters per minute. High speed slitting improves overall production output and allows large roll materials to be processed within shorter production cycles. The synchronized drive system ensures stable web movement during high speed operation, maintaining consistent cutting accuracy and stable roll formation during continuous industrial production.

Wide Capacity

The machine supports multiple width configurations including 1300 millimeters, 1700 millimeters, 2200 millimeters, and 2500 millimeters. This wide processing capacity allows manufacturers to handle large master rolls commonly used in industrial film and non woven material production. Processing wider materials increases production efficiency because multiple finished rolls can be produced simultaneously during a single slitting process.

Precision Control

The machine uses a Siemens SIMATIC motion control system together with Siemens servo drives to coordinate machine operation. The centralized control architecture synchronizes unwinding, slitting, and rewinding processes. Industrial motion control systems provide stable machine performance and precise operational coordination, ensuring that roll materials maintain consistent tension and accurate positioning during production.

Web Guiding

The equipment integrates an imported CCD web guiding system that continuously monitors the position of the moving material. When lateral deviation occurs, the system automatically adjusts the web path to maintain correct alignment. Accurate web guiding ensures stable material positioning during high speed processing and prevents edge deviation that could affect the quality of finished rolls.

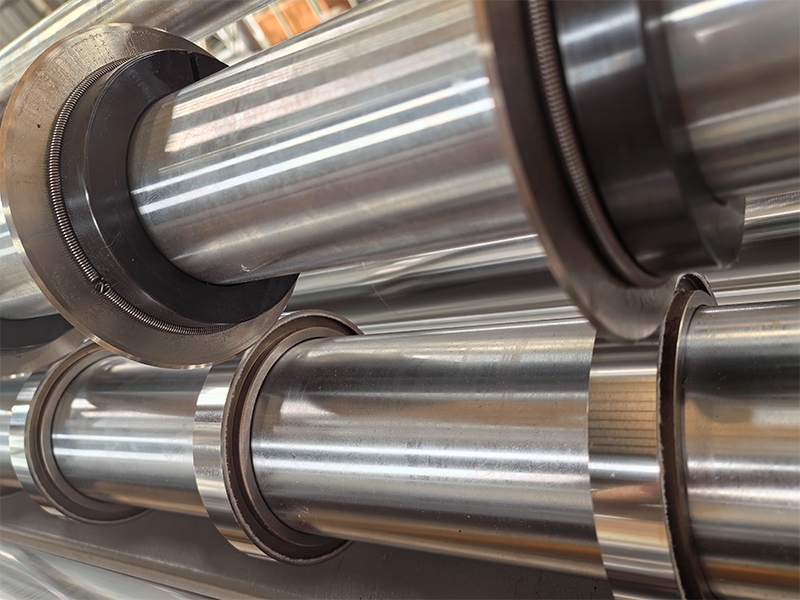

Circular Slitting

The machine uses a pneumatic circular knife slitting system designed for stable cutting performance. Circular knife technology allows materials to be divided into multiple narrow strips while maintaining smooth edges and stable cutting quality. The slitting system supports a minimum slitting width of 28 millimeters and can process materials across a wide range of widths while maintaining consistent cutting accuracy.


Application

Hygiene Products

The equipment is widely used in the production of disposable hygiene materials where large rolls of non woven fabric must be converted into smaller rolls. Non woven materials used in hygiene product manufacturing require precise width conversion before further processing. Slitting machines prepare these materials for production lines used to manufacture baby diapers, adult diapers, sanitary products, and related hygiene materials.

Packaging Industry

Flexible packaging manufacturers use slitting machines to process film materials before packaging production. Materials such as PE film, BOPP film, and laminated packaging films are typically produced in wide master rolls. Slitting equipment converts these materials into roll sizes compatible with automated packaging equipment used in industrial production environments.

Medical Materials

Medical material manufacturers use slitting machines to convert non woven fabrics into narrower rolls used in medical supply production. Medical grade non woven materials are commonly processed in wide rolls and require accurate width conversion before being used in the production of medical protective products and medical packaging materials.

Paper Processing

Paper converting facilities rely on slitting machines to process wide paper rolls produced by industrial paper mills. The slitting process divides large paper rolls into narrower rolls required for printing, packaging, or coating operations. Controlled slitting ensures that paper rolls maintain stable structure and consistent roll density.

Industrial Film

Industrial film manufacturers use slitting equipment to convert large film rolls into smaller rolls suitable for downstream manufacturing processes. Film materials including PET film, CPP film, and nylon film are commonly produced in wide rolls and require slitting before entering printing, laminating, or packaging production lines.

Disposable Products

Manufacturers producing disposable consumer goods rely on slitting machines to prepare non woven materials for product assembly. Slitting equipment converts wide non woven rolls into narrower formats required for automated production lines that manufacture disposable hygiene and protective products.

Material Converting

Converting factories use slitting machines to reorganize large roll materials into standardized roll formats suitable for storage, transportation, and further processing. Slitting operations ensure that finished rolls maintain uniform width and stable roll structure before entering downstream manufacturing processes.


High-Speed Single-Shaft Slitting Machine Cfor Non-Woven Fabric More Details about


About JINGWEI

Foshan Shunde Jingwei Technology Co., Ltd. was founded in Foshan Shunde in 2017. The team has over 16 years of rich experience in the hygiene machinery manufacturing industry. It has long - term exchanges and cooperation with multiple domestic scientific research institutions, possesses profound professional knowledge in equipment manufacturing. Jingwei company attaches great importance to technology research and development and innovation. Currently, Jingwei has 66 patents and has won many honors such as “Specialized, Sophisticated, Distinctive and Innovative” and “High-tech Enterprise”, and has passed the ISO9001 certification. Relying on its strong technology, Jingwei has successfully developed a comprehensive film solution. By integrating cutting - edge hardware, software, and digital technologies, we are in a leading position in equipment digitization and intelligence, especially focusing on promoting the equipment digitization of the production line of hygiene product materials, making the production material process more transparent.


Jingwei helps customers with the informatization construction and digital upgrading of their factories. It continuously iterates and upgrades the production line equipment. Relying on Jingwei's equipment digital system, remote diagnosis can be carried out through the Internet, enabling Jingwei to quickly handle tasks related to the detection, repair, modification, and upgrading of equipment.


The product series of Jingwei Technology covers casting film machines, breathable film machines, printing machines, slitting machines, inspection and rewinding machines, laminated machines and palletizing robot arm.


With excellent product quality and first - class technical services, Jingwei Technology has won the trust and praise of numerous customers. Jingwei has cooperated with international customers such as the German company RKW and domestic well - known brands such as Hengan International Hygiene Products. We are also the designated production machinery suppliers for industry giants such as P&G and Kimberly - Clark.


Today, the employees of Jingwei Technology adhere to the principle of "enterprising, realistic, rigorous, and united", constantly explore and innovate. With technology as the core, quality as life, and users as God, we wholeheartedly provide you with self - control products with the highest cost - performance ratio, high - quality machinery and equipment, and meticulous after - sales service. We are committed to providing you with the most professional and customized solutions.
