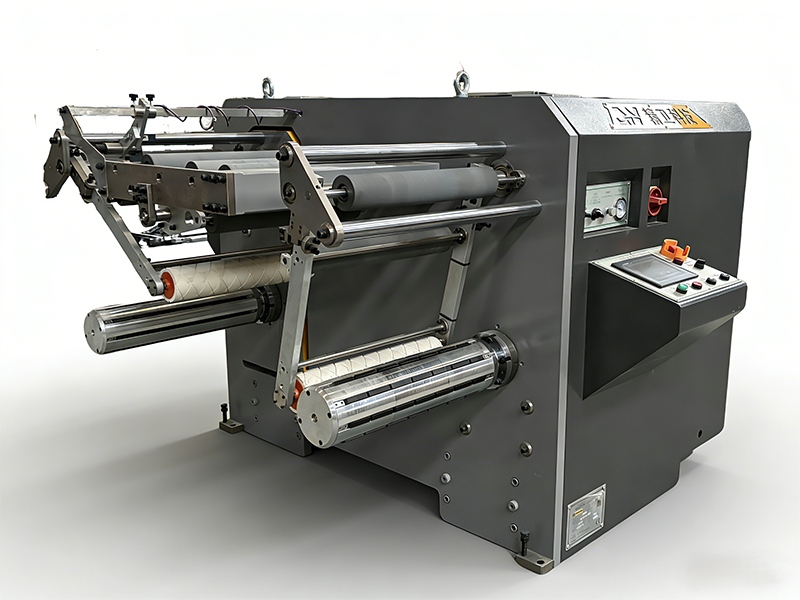

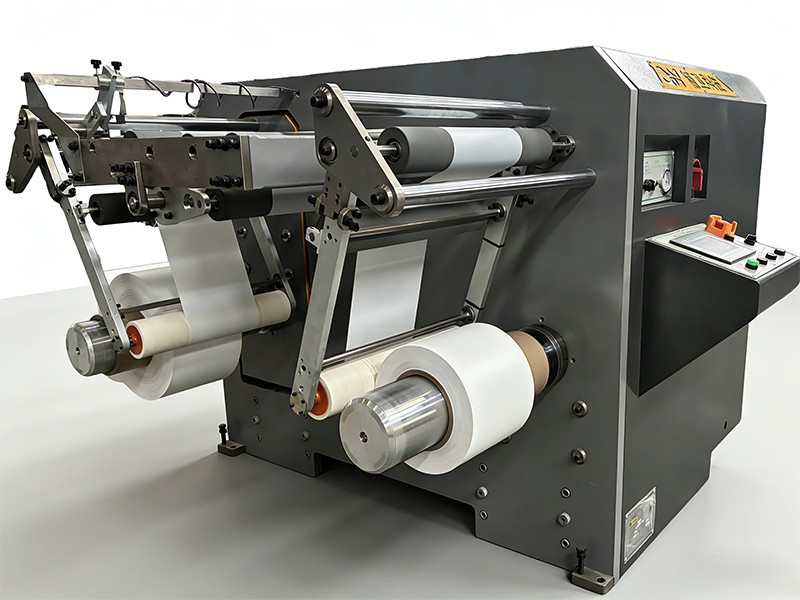

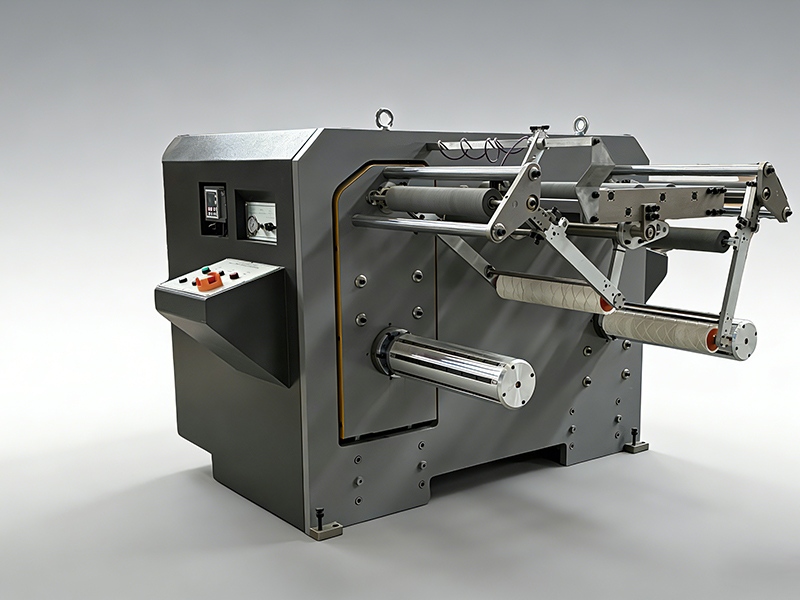

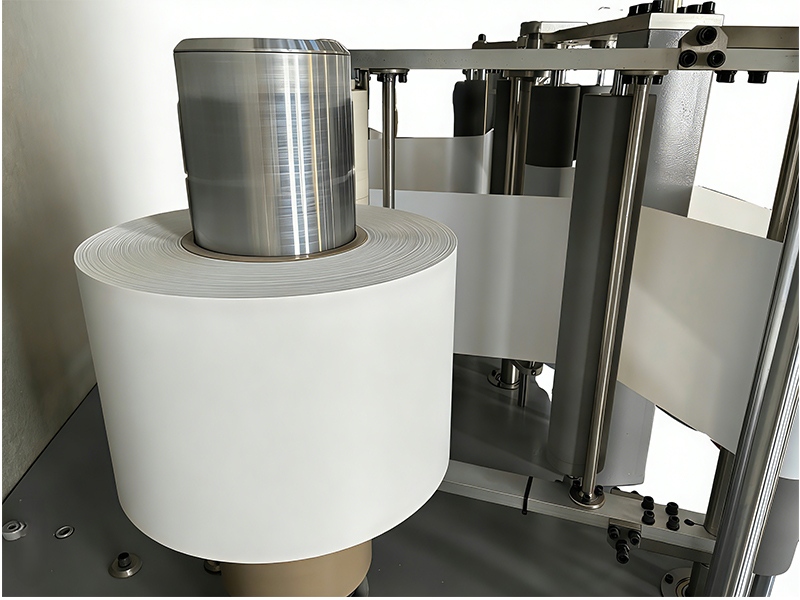

The 6-Inch Shaft High Speed Rewinding Machine is an industrial converting system designed to rewind large master rolls of flexible materials into smaller finished rolls with stable structure and controlled alignment. The machine processes materials such as PE film, BOPP film, PET film, CPP film, PVC film, aluminum foil, and paper by unwinding the original roll and rewinding it onto new shafts. The equipment maintains continuous web movement through synchronized rollers and tension control mechanisms to ensure that the finished rolls remain uniform in diameter and structure.

From an operator perspective, the machine provides a stable production environment where roll materials can be converted efficiently while maintaining consistent roll quality. The control interface allows operators to monitor running speed, roll diameter, and web tension during operation. With a maximum rewinding speed of 600 meters per minute and an unwind diameter reaching 1000 millimeters, the equipment supports continuous industrial production while maintaining stable web alignment and smooth roll surfaces.

High Speed

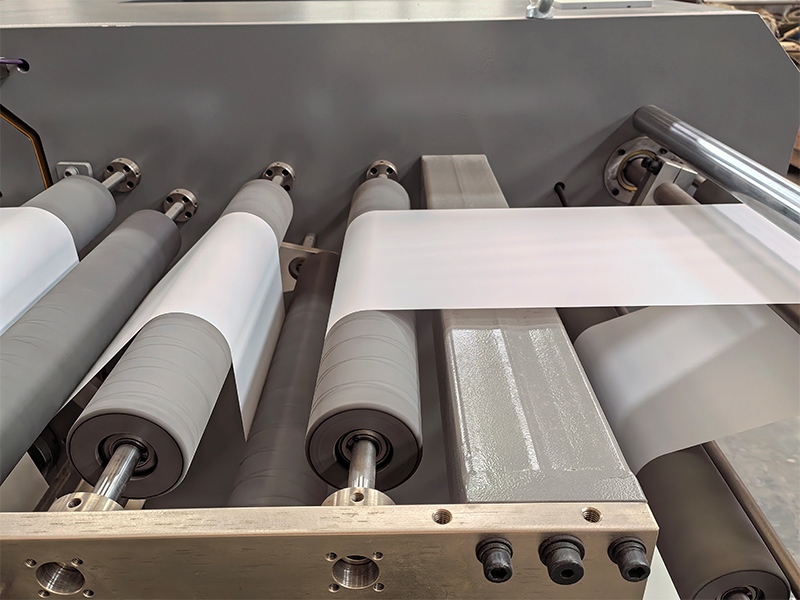

The machine is designed for high production efficiency with a maximum operating speed reaching 600 meters per minute. This speed level allows large volumes of roll materials to be processed within short production cycles. High speed operation improves production throughput and reduces equipment idle time during converting processes. The rewinding system maintains synchronized motion between unwinding rollers, guide rollers, and winding shafts to ensure stable material movement during high speed operation.

Large Diameter

The equipment supports both unwind and rewind diameters up to 1000 millimeters. Large diameter roll capability reduces the frequency of roll replacement during production and allows longer continuous operation. Processing large master rolls improves production efficiency because fewer roll changes are required during a working shift. Large diameter capacity also supports materials produced in wide industrial rolls used in film and packaging manufacturing.

Precision Control

The entire machine is centrally controlled by a Siemens SIMATIC motion control system. Industrial motion controllers coordinate the operation of multiple drive components to ensure stable machine performance. Siemens servo drive systems provide accurate speed synchronization between unwinding and rewinding units. Servo control technology maintains stable machine operation while ensuring consistent roll structure and reliable process stability during continuous production.

Web Guiding

The equipment integrates a frame type web guiding system to ensure accurate material alignment during operation. The web guiding mechanism continuously monitors the position of the moving material and automatically corrects lateral deviation. This positioning system maintains stable web alignment during high speed processing. Accurate web guiding ensures that finished rolls maintain consistent edges and stable roll structures after the rewinding process.

Tension Control

The machine uses a low tension detection sensor to monitor web tension during operation and maintain stable winding force. Continuous tension monitoring allows the system to automatically adjust winding speed and torque to maintain consistent tension levels. Stable tension control prevents roll deformation and ensures that finished rolls maintain consistent density and smooth surfaces during production.

Film Industry

The machine is widely used in plastic film converting plants where large master rolls of PE, BOPP, PET, CPP, and PVC films must be rewound into smaller rolls. Film manufacturers often produce wide rolls during extrusion or coating processes. Rewinding equipment converts these master rolls into standardized roll sizes required for further processing such as printing, laminating, and packaging production.

Paper Processing

Paper manufacturing facilities use rewinding machines to convert large paper rolls produced by paper mills into smaller rolls suitable for industrial processing. Rewinding equipment ensures that paper rolls maintain uniform winding structure and stable roll density. Controlled rewinding allows paper products to be prepared for printing, coating, or packaging production processes.

Aluminum Foil

Aluminum foil production lines require rewinding equipment to convert wide foil rolls into smaller rolls used in food packaging and industrial applications. Foil materials are typically produced in large diameter master rolls that must be processed into smaller rolls for downstream operations. Rewinding equipment ensures that foil rolls maintain smooth surfaces and stable roll alignment during production.

Flexible Packaging

Flexible packaging manufacturers use rewinding machines to prepare packaging films before converting or sealing operations. Packaging materials such as laminated films and plastic films are commonly produced in wide rolls. Rewinding machines convert these materials into roll formats compatible with automated packaging equipment used in industrial production lines.

Nonwoven Fabric

Nonwoven material producers rely on rewinding machines to convert large nonwoven rolls into smaller rolls required for further processing. Nonwoven materials are commonly used in hygiene products, medical materials, and filtration products. Rewinding equipment prepares these materials for cutting, lamination, and packaging processes while maintaining stable roll quality.

Printing Preparation

Roll materials used in industrial printing lines often require rewinding before entering printing equipment. Rewinding machines prepare roll materials with controlled diameters and stable winding structure. Properly rewound materials ensure stable feeding into printing machines and reduce the risk of web misalignment during printing production.

Industrial Converting

Converting factories use rewinding equipment to reorganize large roll materials into standardized roll formats required for storage and transportation. Industrial converting lines process various materials including films, papers, and laminated materials. Rewinding machines ensure that finished rolls meet production specifications and maintain consistent structural quality before shipment.
