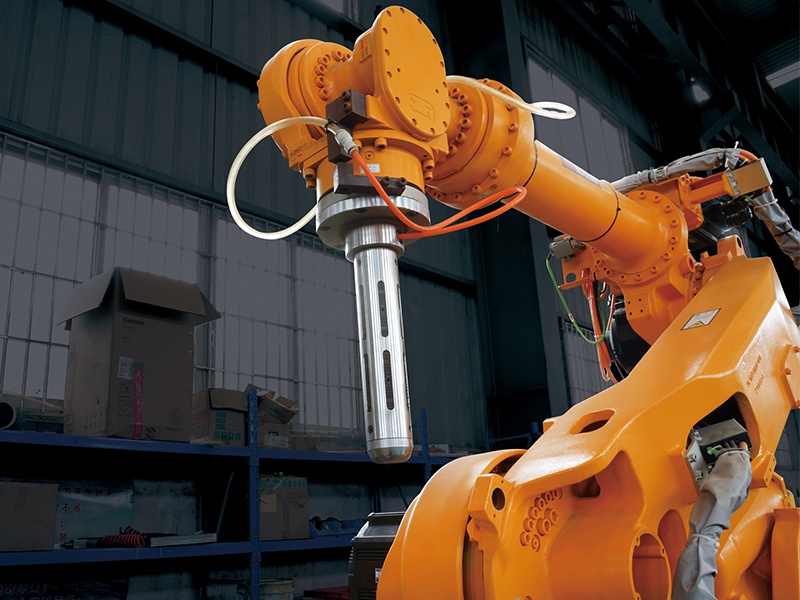

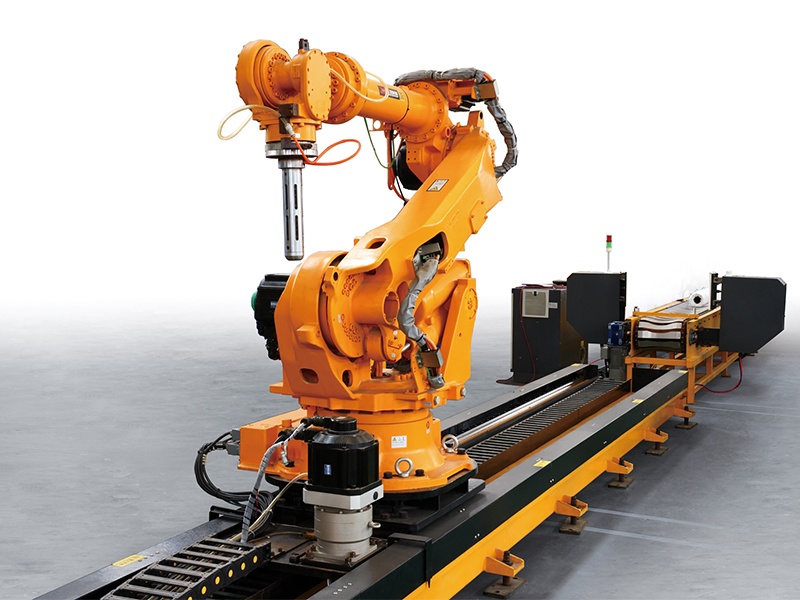

Automated Palletizing Equipment is composed of the main robot arm, end gripper mechanism, conveyor line interface module, intelligent sensor system, servo drive mechanism, electronic control system and human-machine interface. It is an industrial-grade intelligent equipment dedicated to the automatic handling, grabbing, alignment stacking and shaping of materials.
Palletizing Robot Arm Parameter
| Model No. | Payload Capacity |
| JW-JXS | 200KG |
※Remarks: Other sizes of machines are available upon request
Palletizing Robot Arm Features
Centralized intelligent control | Efficient and unified operation logic
Automated Palletizing Equipment adopts the German SIEMENS SIMATIC high-end motion control platform to achieve unified management of all operations such as multi-axis linkage of the whole machine, operation rhythm scheduling, path optimization and safety interlocking. The control system response delay is less than 0.25 seconds, the operation coordination is high, and it is easy to connect with the MES system.
Highly stable servo drive | Ensure continuous operation accuracy
The core drive mechanism is equipped with a full set of German SIEMENS servo drive system, which can provide high torque and fast response power output for each axis of the robot arm. The single arm can support a maximum payload of 200kg, and the repeated positioning error is maintained at no more than ±0.1mm after 8 hours of continuous operation.
Flexible stacking mode selection | Automatic switching of multiple stacking types
The system presets 5 mainstream stacking methods (such as cross staggering, stacking in the same direction, inter-layer staggering, etc.), and the stacking parameters can be customized through the touch interface. The maximum stacking height supports up to 2.2 meters to meet the space and transportation needs of different customers.
Highly compatible gripping structure | Support customized end effector
The end gripping system supports the interchange of structural modules such as suction cup type, clamping type, hook arm type, etc., which are suitable for different forms of coils, cartons, bags, barrels and other items. The gripping time is only 2.1 seconds/time, and the alignment angle can be automatically adjusted with the visual recognition system.
Shizuoka, Japan | Mitsui Chemicals Automatic palletizing of coil products
Mitsui Chemicals Factory deploys type Automated Palletizing Equipment at the back end of its heat-sealing film production line to automatically stack finished coils on pallets. The Automated Palletizing Equipment runs 20 hours a day, automatically identifies the roll width and performs precise palletizing, greatly reducing slippage and deformation caused by manual stacking.
Dubai, UAE | UNIPACK plastic film packaging line end application
UNIPACK uses Automated Palletizing Equipment for automatic palletizing of boxes in its PE film packaging production. By docking with the original conveying system, the Automated Palletizing Equipment performs stacking according to the content recognized by the scanner, improving packaging efficiency by 40% and reducing the number of workers from three shifts to one and a half shifts.
Querétaro, Mexico | FIBRANSA steel coil stacking system matching
FIBRANSA purchased Palletizing Robot Arm for steel strip roll palletizing. The company uses a customized gripper with a mechanical clamp arm to stack a single roll of steel strip weighing up to 160kg on a special iron pallet, with a stacking height of 2 meters, effectively improving loading efficiency.
Penang, Malaysia | TOP GLOVE automatic stacking of medical packaging boxes
TOP GLOVE medical gloves factory uses Automated Palletizing Equipment to realize automatic identification and stacking of finished product outer packaging boxes. The system is equipped with a visual alignment module to identify the batch number and automatically classify and stack, effectively reducing the manual error stacking rate and improving the degree of informatization of the workshop.
Palletizing Robot Arm Care and Maintenance
Multi-axis joint lubrication system inspection
Automated Palletizing Equipment should add grease to the main arm joint axis after every 100 hours of continuous operation. Use the specified type of high-temperature and pressure-resistant lubricant to ensure smooth transmission and avoid wear accumulation affecting trajectory accuracy.
Servo system heat dissipation and drive voltage monitoring
It is recommended to check whether the servo drive operating voltage is stable within the range of ±5% every month, and clean the control cabinet cooling fan filter to ensure that the electrical system is running at a low temperature for a long time to prevent control interruption due to overheating.
End effector structure tightening and verification
For the gripper/suction cup structure, check whether each joint component is loose once a week, especially the connector and the action execution cylinder. The action response should be kept within<300ms. if="" the="" action="" is="" abnormal="">
Regular calibration of stacking program and sensor
Perform a simulated run of the preset stacking program once a month to check whether it is consistent with the actual stacking path and adjust the parameters in time. At the same time, the infrared/visual sensor lens needs to be cleaned and the sensitivity calibrated to prevent recognition errors caused by dirt.
Safety interlock system inspection
Emergency stop switches, safety light curtains, and fence limit sensors are inspected quarterly to ensure that the system can complete braking and stopping within 0.5 seconds when triggered by danger. Regular testing of its effectiveness is the key to ensuring the safety of workshop personnel.
