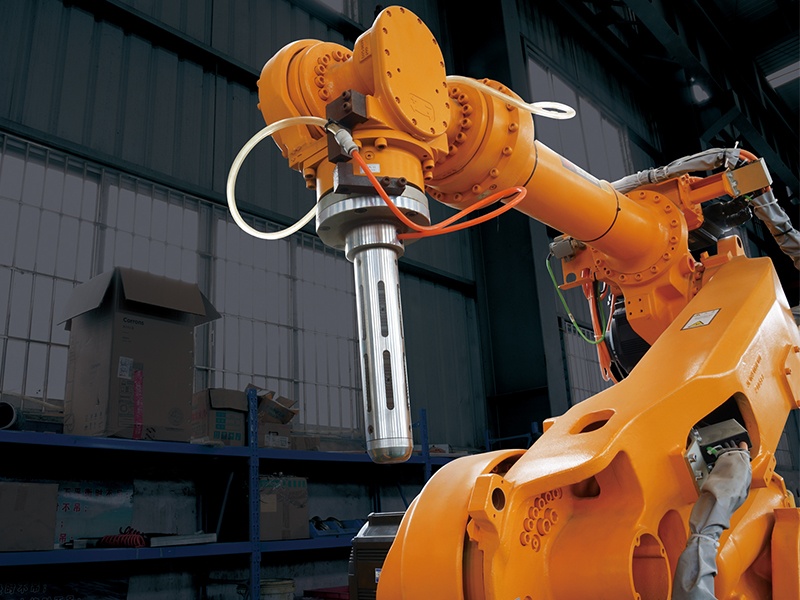

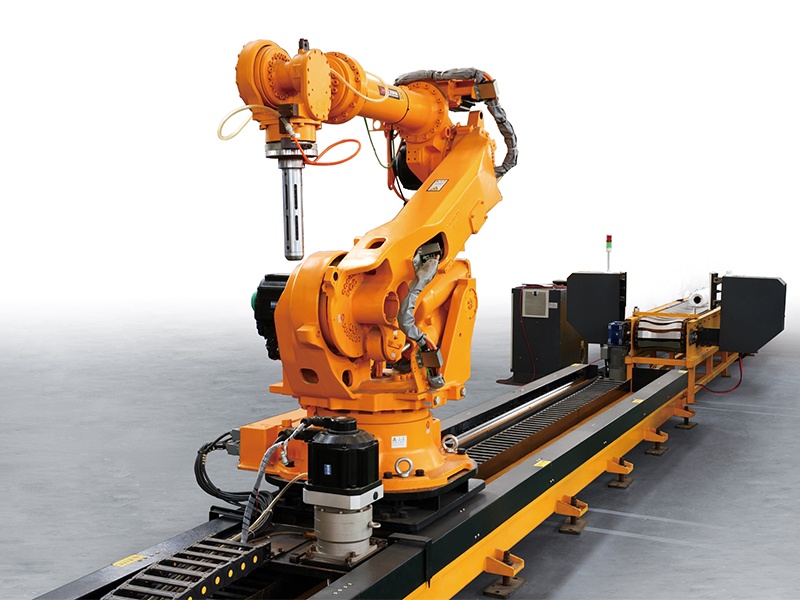

Robotic Palletizing Equipment is a high-precision mechanical system designed for industrial automated palletizing tasks. It is mainly used to automatically complete repetitive processes such as product handling, sorting, grabbing, palletizing and stacking.
Palletizing Robot Arm Parameter
| Model No. | Payload Capacity |
| JW-JXS | 200KG |
※Remarks: Other sizes of machines are available upon request
Palletizing Robot Arm Features
High load performance: 200KG effective load bearing
The model of Robotic Palletizing Equipment is JW-JXS. The maximum load capacity of a single handling is 200 kg. It can easily handle the stacking of heavy workpieces such as large-size or high-density coils and boxes, significantly reducing the pressure of manual handling and improving the production rhythm.
Precise positioning: ±0.05mm repeatability
Robotic Palletizing Equipment is equipped with a high-precision servo system and a multi-dimensional feedback mechanism. The repeatability positioning accuracy can reach ±0.05mm, ensuring the consistency of product placement during continuous handling and palletizing, and improving the neatness and yield of stacking.
Modular palletizing configuration: diversified palletizing options
Robotic Palletizing Equipment supports flexible settings of various palletizing types (such as staggered palletizing, forward palletizing, double-row palletizing, etc.). Users can customize the palletizing logic through the human-machine interface without changing the fixture or changing the robot arm path, greatly improving the convenience of operation and adaptability of operations.
Stable control: SIEMENS centralized control platform
The entire control system adopts the German SIEMENS SIMATIC high-end motion control platform to achieve centralized management and highly coordinated control. The system has fast response speed, strong anti-interference ability, flexible program expansion and other advantages, suitable for multi-station automation integration.
Quick identification system: supports automatic sensing of material information
Robotic Palletizing Equipment is equipped with intelligent identification sensors and optional visual modules, which can automatically sense product size, weight and stacking position, and automatically adjust the gripping force and path to ensure that products of different specifications can be accurately stacked.
Steel Processing Workshop
It is widely used in heavy coil production lines such as steel strips and steel coils. Through automatic identification and stacking, it effectively improves the overall loading and unloading efficiency, especially suitable for the terminal sorting and packaging section in the continuous rolling workshop.
Paper Packaging Factory
In the handling and stacking section of large corrugated cardboard and finished paper rolls, Robotic Palletizing Equipment can automatically grab and neatly stack, effectively reducing the intensity of manual participation and improving the standardization of shipping stacking.
Chemical Production Base
It is suitable for automatic stacking operations of heavy plastic woven bags, barreled chemical raw materials, composite materials and other products. It can replace high-intensity labor and adapt to toxic or corrosive environments to ensure employee safety.
Beverage Assembly Line
Robotic Palletizing Equipment can be used in the terminal automatic stacking area of multi-specification beverage boxes to achieve rapid classification and code optimization before whole-pallet transportation. It has established cooperative deployment with well-known beverage brands such as PepsiCo and Nestlé.
Building materials production line
In the stacking of tiles, gypsum boards, cement bags, etc., Robotic Palletizing Equipment shows good load-bearing capacity and path planning capabilities, and is particularly suitable for production lines with multiple specifications and frequent product changes.
Lubricate joint bearings regularly
To ensure the flexibility and durability of each moving joint of the robot arm, it is recommended to perform lubrication maintenance every 500 hours of operation cycle, using high-performance grease recommended by the original manufacturer to prevent dry grinding or jamming of the sleeve.
Palletizing Robot Arm Care and Maintenance
Check the voltage and temperature of the servo drive system
The power supply voltage of the German SIEMENS servo drive should be checked monthly to ensure that it is not less than 10% of the rated input value, and the operating temperature should not exceed 60°C to avoid overheating of the controller and cause response hysteresis.
Clean visual recognition and sensor components
For versions equipped with visual recognition modules, use a lint-free cloth to clean the lens surface and light sensor probe every week to prevent dust and oil stains from blocking the recognition signal and maintain automatic recognition efficiency and accuracy.
Update system firmware and program logic
It is recommended to upgrade the system software through the remote maintenance channel provided by the manufacturer every quarter to obtain the latest fault diagnosis capabilities and stacking optimization algorithms, extend the life cycle of Robotic Palletizing Equipment and improve control stability.
Replace worn parts and tightening inspection
After the cumulative operation exceeds 8,000 hours, it is recommended to replace the main bearing bearings, clamp springs and other vulnerable parts, and comprehensively check the tightness of the machine body bolts to prevent structural loosening and error accumulation due to long-term operation.
