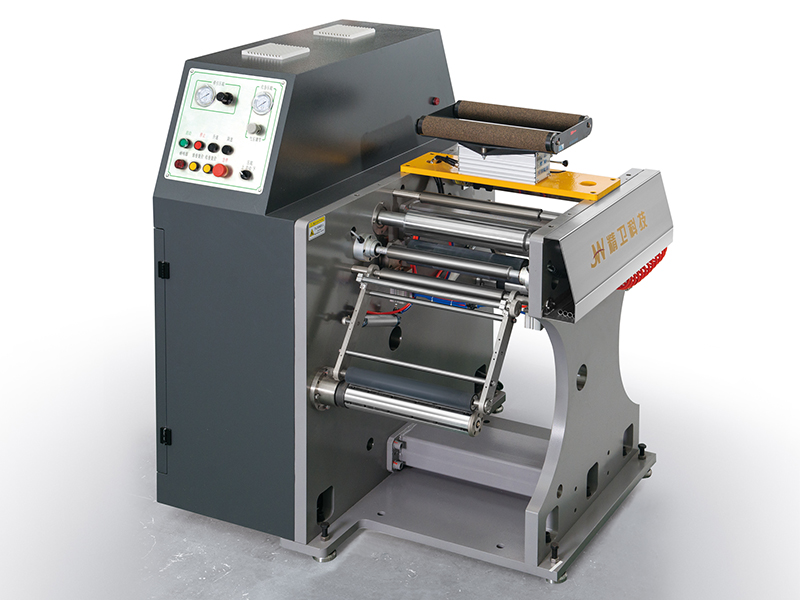

F500 High Speed Rewinding Machine
Category：Inspection/Rewinding
Printing Pattern Fixed Length Detection System
Online Defect Detection System
-
+86-18000876276 WhatsApp
Stretch Film Slitter Rewinder Machine is an intelligent device for efficient rewinding and slitting of various roll materials (such as PE stretch film, BOPP film, aluminum foil, paper, non-woven fabrics, etc.)
F500 High Speed Rewinding Machine Parameter
| Model No. | Max Materials Width | Unwind Dia. | Rewind Dia. | Max Speed | Material |
| JW-F500-800 | 500 | Φ800mm | Φ800mm | 400m/min | PE, BOPP,PET,CPP, PVC, Aluminum Foil And Paper. |
※Remarks: Other sizes of machines are available upon request
F500 High Speed Rewinding Machine Features

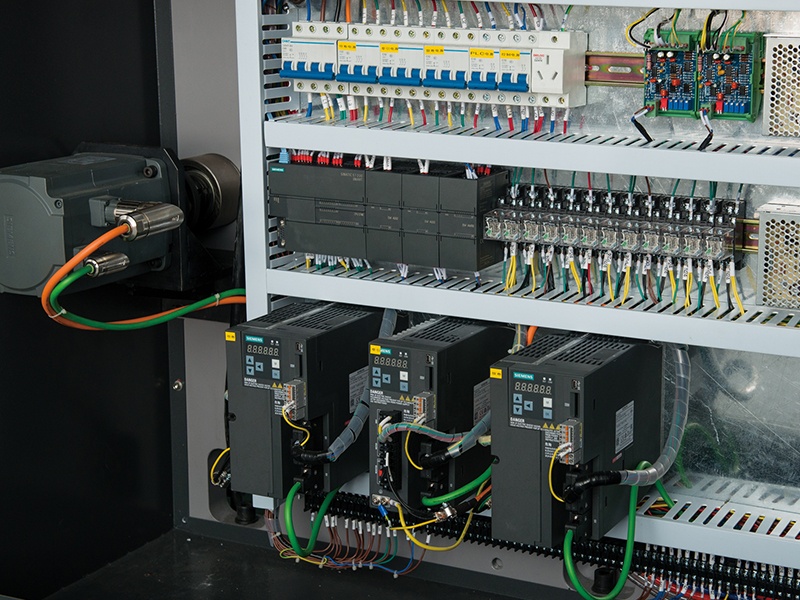

Intelligent centralized control | Full integration of SIEMENS platform
Stretch Film Slitter Rewinder Machine adopts German SIEMENS SIMATIC motion controller for centralized control to ensure that the unwinding, feeding, deviation correction and rewinding of materials are highly synchronized. The system response time is less than 0.3 seconds, and multi-task linkage can be achieved at the same time, greatly improving the stability and operation efficiency of the equipment.
High-speed and stable drive | Support 400m/min running speed
Stretch Film Slitter Rewinder Machine is equipped with German SIEMENS high-torque servo motor to drive the core drive shaft, which can achieve a maximum running speed of 400 meters/minute, meeting the needs of industrial-grade large-scale continuous operation, and is suitable for high-speed rewinding of light and medium-thickness film materials.

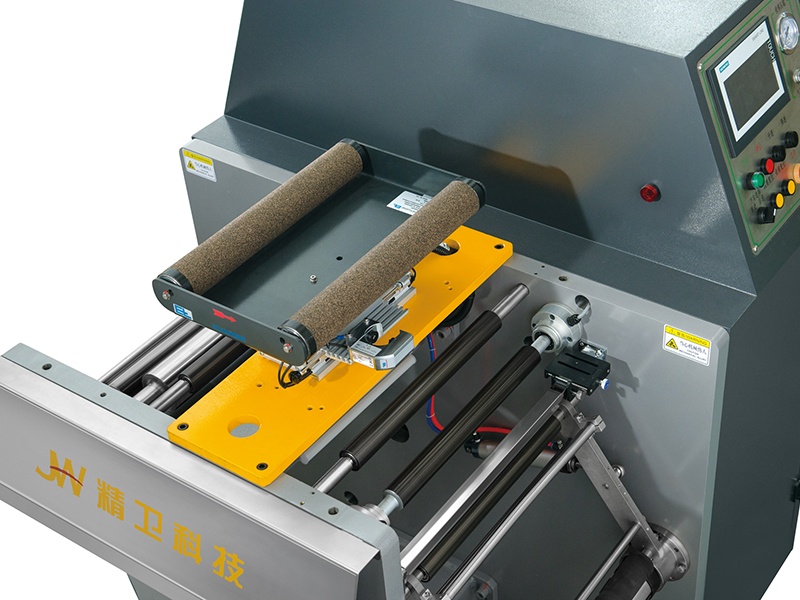

Precision deviation correction system | Frame-type guide ensures material trajectory
Stretch Film Slitter Rewinder Machine adopts frame-type deviation correction guide structure, combined with imported CCD line recognition system, automatically identifies changes in material edge position and adjusts in real time, with a control accuracy of ±0.1mm, effectively preventing problems such as material deviation and wrinkling.
Two-way switching operation | Free forward and reverse switching is more flexible
Stretch Film Slitter Rewinder Machine has forward/reverse two-way switching function, which is convenient for operators to flexibly adjust the rewinding direction to adapt to different material characteristics and process requirements, especially suitable for precision rewinding processes that require reverse proofreading of printed patterns.
Automatic tension adjustment | High-precision control of low-tension sensors
Built-in low-tension special detection sensors can automatically sense changes in material force, combined with tension control modules, to achieve automatic adjustment of unwinding and rewinding tension within the range of 0.1N~2N, suitable for high-precision rewinding of flexible film materials.

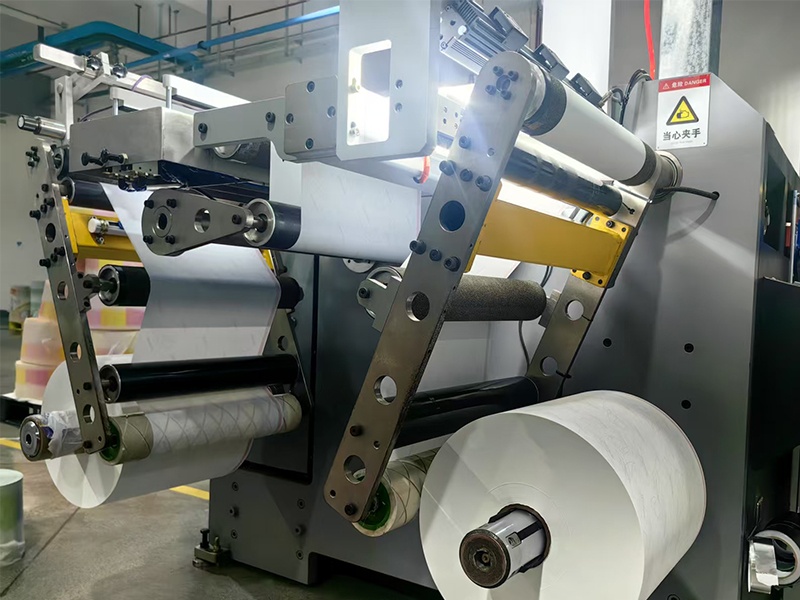

1. Premium Baby Diaper Films
Hengan Group employs the F500 to rewind premium baby diaper films, ensuring balanced roll tension for continuous production.
2. Elderly Care Pad Films
Windeed applies the system in elderly care pad film production, achieving tight winding and smooth edges for high-speed converting.
3. Feminine Care Film Rolls
Qifeng uses the rewinding machine for sanitary napkin films, providing defect-free rolls that meet hygiene industry standards.
4. Training Pants Laminates
Xinqi integrates the F500 into training pants laminate film production, enhancing roll alignment and minimizing wrinkles.
5. Global Hygiene Packaging Rolls
RKW leverages the rewinder for packaging films in global hygiene supply, ensuring compliance with export quality requirements.
6. Sanitary Wrap Film Processing
Haoyue applies the machine to sanitary wrap films, delivering precise roll density and consistent performance.
7. Healthcare Film Rewinding
HET employs the F500 for healthcare film rewinding, ensuring rolls maintain critical protective properties.
8. Hygiene Product Films
Avoteck uses the system to rewind hygiene product films, providing accurate roll width and high-speed efficiency.
9. Eco-friendly Packaging Films
Zhaoan Tech applies the rewinder to degradable packaging films, ensuring films maintain eco-friendly performance.
10. Disposable Household Film Rolls
Huahan employs the F500 to produce tightly wound rolls for disposable household films, supporting stable logistics.
11. Bedding Protection Films
Zhuangda Material integrates the system into bedding protection film production, achieving even winding for large rolls.
12. Laminated Film Rewinding
Quanta-gold Boat uses the machine to rewind laminated films for specialty packaging, ensuring stable winding tension.
13. Nonwoven Hygiene Laminates
Xinsanhe applies the F500 to nonwoven laminate films, enhancing roll precision and minimizing errors.
14. Specialized Hygiene Film Rolls
Jinchang leverages the rewinding system for specialized hygiene film rolls, supporting high-volume manufacturing.
15. Industrial Protective Films
Xinghuo employs the machine for protective industrial hygiene films, providing compact rolls suitable for safety applications.
F500 High Speed Rewinding Machine Care and Maintenance
Maintenance of optical components of the correction system
It is recommended to wipe the CCD sensor and its light source mirror with a clean dust-free cloth every 100 hours of operation to prevent dust from blocking the image recognition deviation. If the error is found to increase, the automatic correction procedure should be repeated.
Servo drive unit heat dissipation monitoring
Check the internal temperature of the servo motor and control cabinet once a month, keep the cooling fan unobstructed, and remove dust from the surface of the controller. If the operating temperature exceeds 50°C, it is recommended to replace the fan or install an auxiliary cooling device.
Tension detection sensor sensitivity adjustment
Perform a tension sensor sensitivity test once a quarter to keep its detection error within ±0.05N. If there is a large tension fluctuation, the sensor head should be replaced or the PID control parameters should be recalibrated.
Lubrication of winding bearing and mechanical clearance check
After the Stretch Film Slitter Rewinder Machine runs for 200,000 meters of material, it is necessary to add grease to the winding bearing and the shaft expansion mechanism, and check whether the rotation clearance is too large. If the clearance exceeds 0.2mm, the sleeve or bearing should be replaced in time.
Calibration of pattern fixed length recognition system
If the pattern fixed length system is selected, the detection accuracy should be re-tested once a week, and the deviation between the set length and the rewinding result should be compared to ensure that it is within the range of ±1mm, and the recognition sensitivity should be adjusted in time according to the reflectivity of the material.
