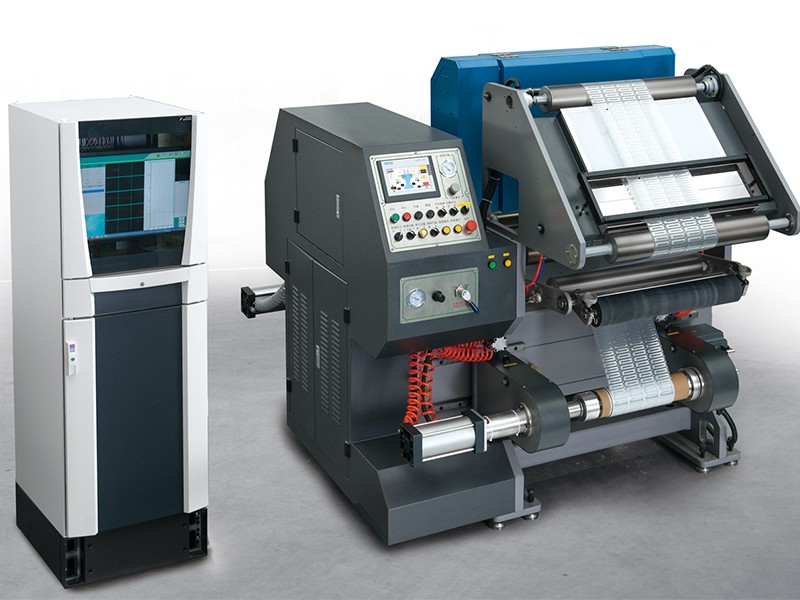

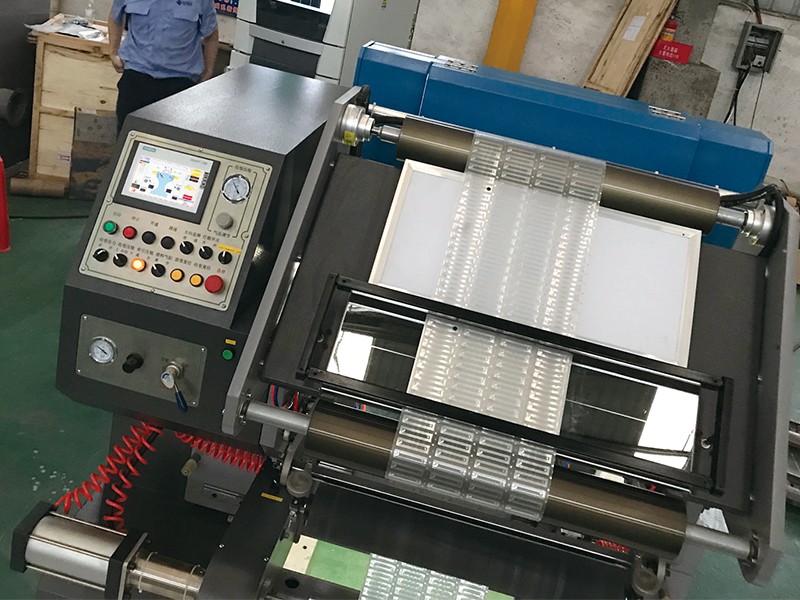

Automated inspection equipment is a highly integrated intelligent image inspection equipment designed for defect identification and quality control of coiled materials during production.
Inspection machine Parameter
| Model No. | Max Materials Width | Unwind Dia. | Rewind Dia. | Max Speed | Material |
| JW-PJ1300 | 1300 | Φ800mm | Φ800mm | 450m/min | PE, BOPP,PET,CPP, PVC, Aluminum Foil And Paper. NWF |
| JW-PJ500 | 500 | Φ800mm | Φ800mm | 450m/min | PE, BOPP,PET,CPP, PVC, Aluminum Foil And Paper. NWF |
※Remarks: Other sizes of machines are available upon request
Inspection machine Features

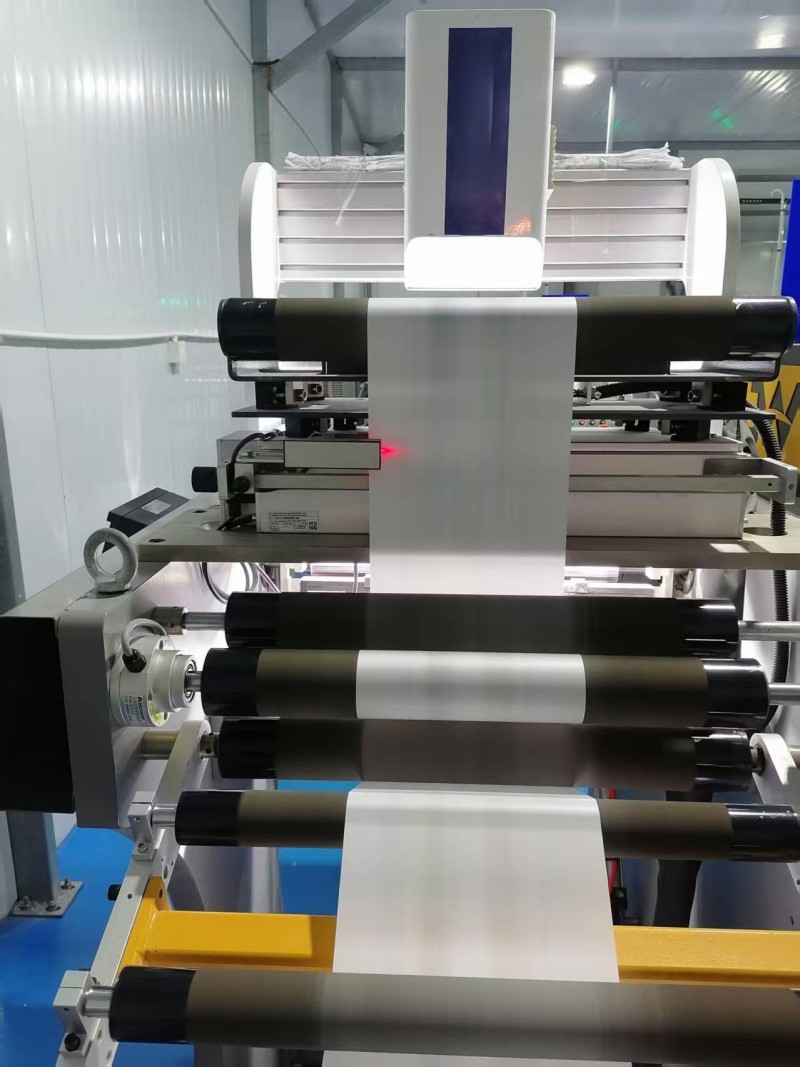

Intelligent and accurate | Image comparison accuracy up to banknote level
Automated Inspection Equipment is equipped with a high-end image comparison system with an identification accuracy of 0.03mm, which is suitable for micro-defect identification and texture deviation comparison. It has an image processing algorithm that meets the banknote detection standard to ensure that product quality meets the needs of the high-end market.
Stable and reliable | Tension control system ensures smooth operation
The tension system implements closed-loop feedback control and adjusts the tension changes of running materials in real time to ensure that the materials do not wrinkle or deviate at high speeds. It is suitable for online inspection of easily deformed substrates such as PET, BOPP, and aluminum foil.
Wide-width compatibility | Supports material widths from 500mm to 1300mm
Automated Inspection Equipment provides two standard specifications , which can support materials with a maximum width of 1300mm. It also has a modular adjustment mechanism for quick adaptation to different product lines.
Centralized control | SIEMENS integrated motion platform
The entire control system is based on the German SIEMENS SIMATIC controller and full servo drive architecture, supporting synchronous data acquisition, image processing and material transportation, achieving Automated Inspection Equipment response time of less than 0.5 seconds, low failure rate and strong system stability.

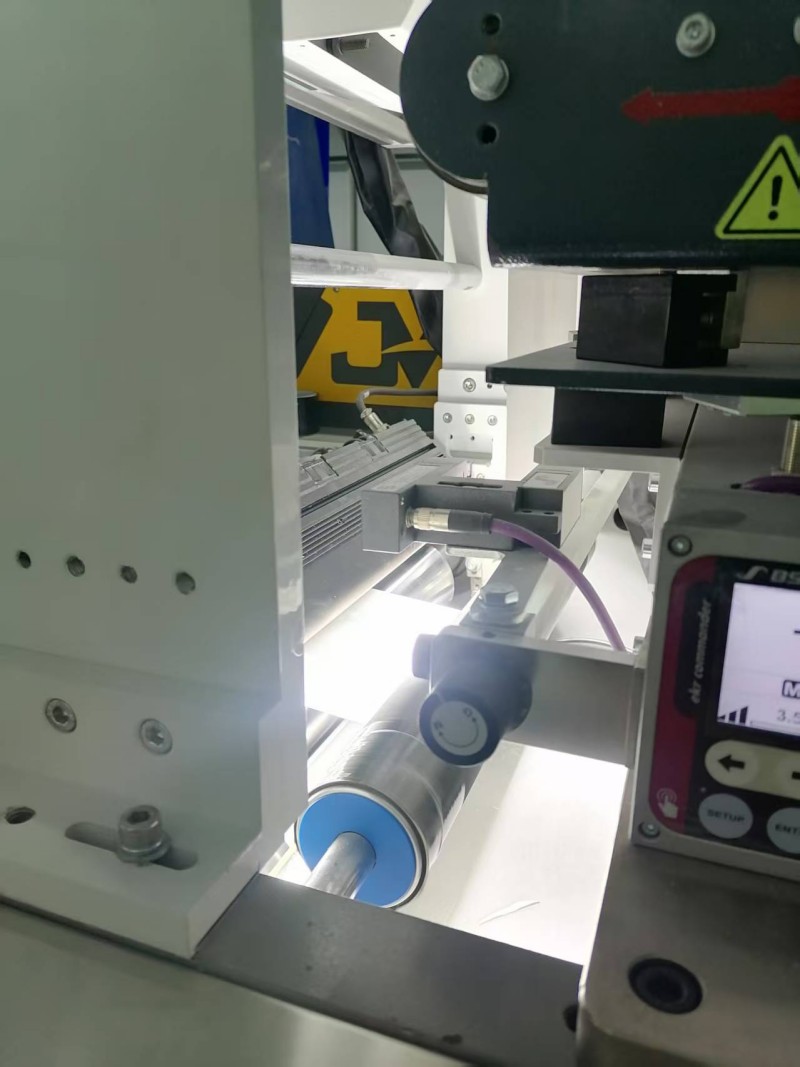

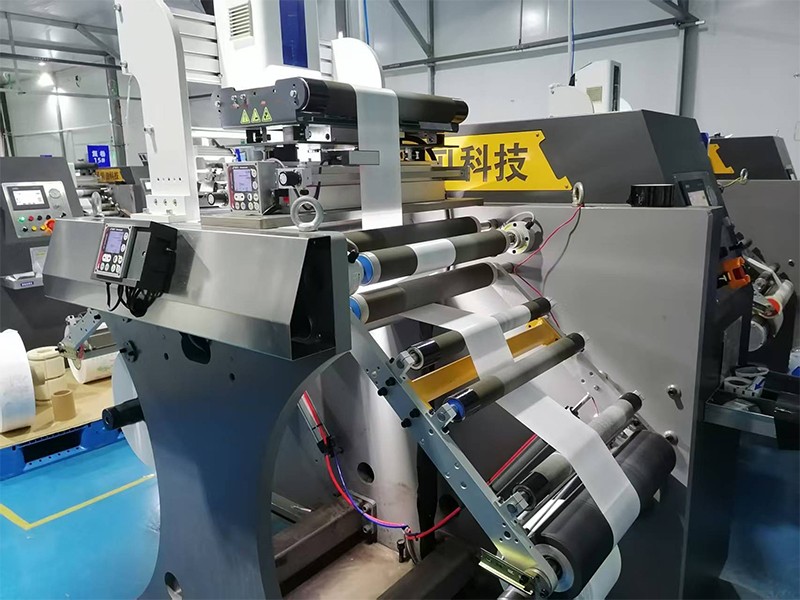

Automatic correction | CCD image guidance ensures material trajectory accuracy
The imported CCD line correction module can continuously identify the edge of the material and adjust the deviation range to adapt to the ±2mm fluctuation of the material running trajectory, and achieve end-to-end accurate tracking and stable transportation.

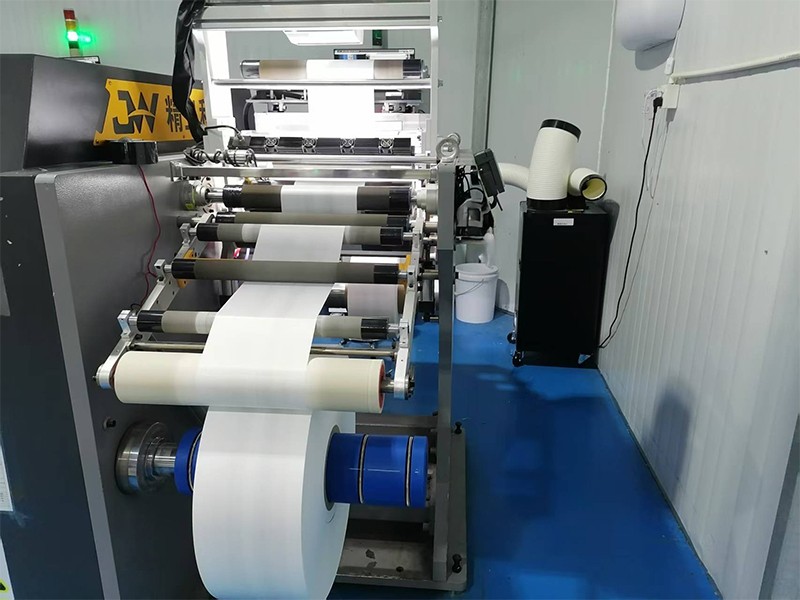

1. Baby Diaper Film Quality Control
Hengan Group uses the inspection machine to check backsheet films for baby diapers. The system detects pinholes, wrinkles, and uneven thickness, ensuring that every film roll meets strict hygiene product standards.
2. Adult Care Pad Film Inspection
Windeed applies the machine in adult care pad production. The inspection system ensures breathable films are free from defects, supporting reliable large-scale manufacturing.
3. Sanitary Napkin Film Checking
Qifeng leverages the inspection machine to monitor thin films for sanitary napkins, guaranteeing accurate defect detection and improving downstream lamination efficiency.
4. Training Pants Film Testing
Xinqi integrates the inspection machine to evaluate baby pants films. The technology identifies surface inconsistencies and ensures consistent product quality.
5. Household Hygiene Film Inspection
Huahan employs the inspection machine for household protective hygiene films. It ensures uniformity in large-width films used for table covers and disposable sheets.
6. Mattress Protector Film Quality
Zhuangda Material applies the equipment to mattress protector films, ensuring that rolls are free from scratches or uneven winding before shipment.
7. Functional Packaging Film Monitoring
Quanta-gold Boat relies on the inspection machine to control the quality of functional packaging films, maintaining stability for eco-friendly and specialty products.
8. Protective Film Roll Testing
Xinghuo uses the machine to inspect protective film rolls for industrial hygiene products, preventing defects and ensuring safety compliance.
Inspection machine Care and Maintenance

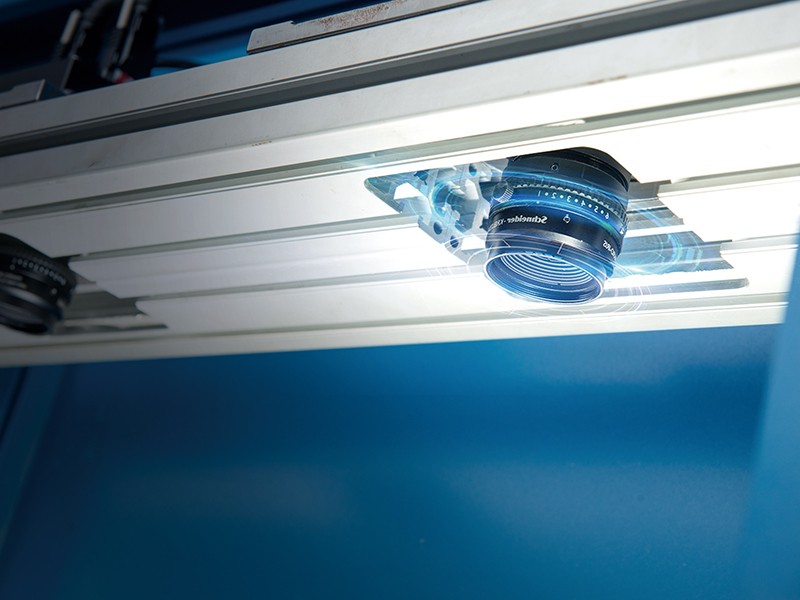

Image system lens cleaning and calibration adjustment
It is recommended to wipe the detection lens with anti-static cloth every 120 hours of operation to keep the image clear; update the image comparison benchmark every two weeks to avoid image recognition errors caused by changes in ambient light.
Correction system light source inspection and correction
The CCD correction system needs to detect the light source intensity and focus deviation once a month. If the light intensity is lower than the standard value of 75lux, the LED light source module should be replaced in time to ensure the accuracy of material edge capture.
Tension system cylinder and pressure detection maintenance
It is recommended to check the tension control cylinder for air leakage or action delay every 500 hours, and calibrate the pressure regulating valve to keep the system working pressure within the range of 0.5Mpa~0.6Mpa.
SIEMENS control module firmware update
The technical team will perform a firmware upgrade once a quarter to keep the SIMATIC controller software and driver synchronized, reduce the risk of system communication interruption, and improve the image algorithm processing efficiency.
Lubrication of unwinding and rewinding bearings and inspection of shaft core
It is recommended to add high-temperature grease to the unwinding and rewinding bearings after every 100,000 meters of material operation to ensure smooth rotation without abnormal noise. At the same time, check whether the expansion of the air shaft is maintained in good condition to prevent the risk of shaft derailment.
