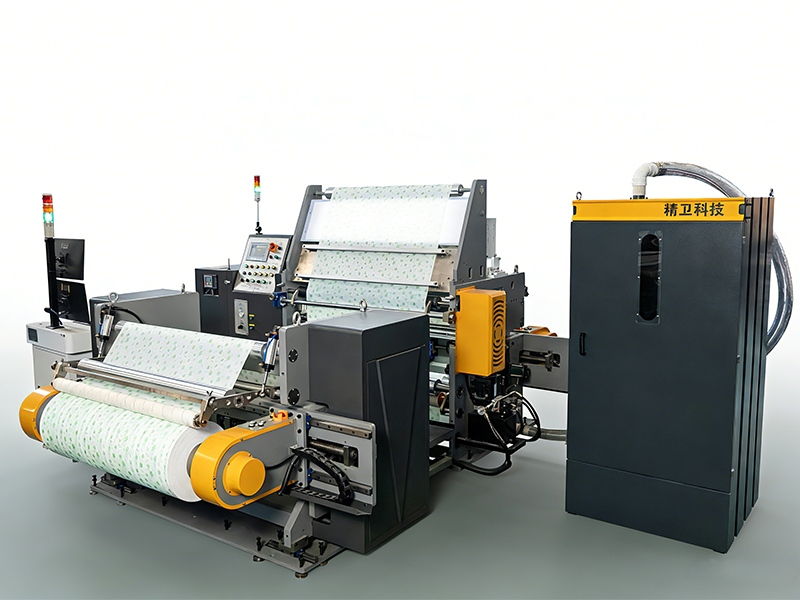

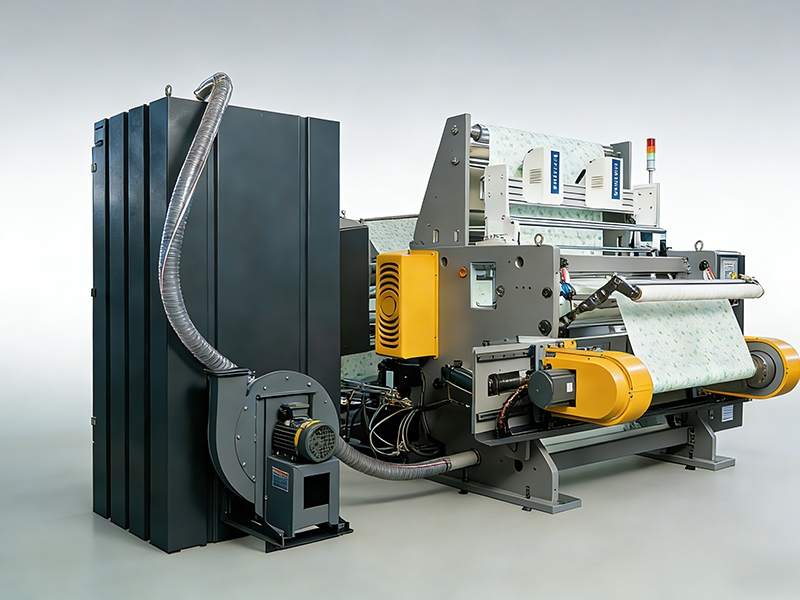

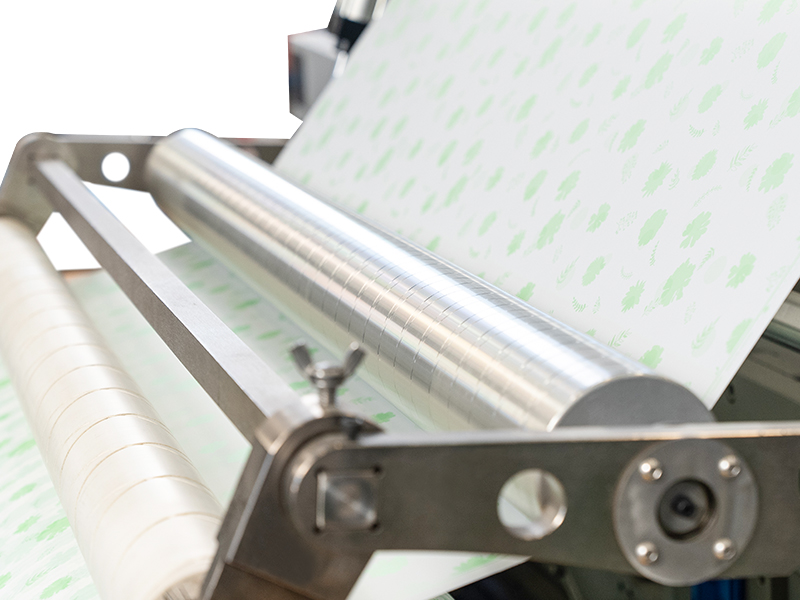

An Inspection Rewinding Machine is an industrial converting device designed to inspect printed roll materials while simultaneously rewinding them into finished rolls. The equipment is used in roll-to-roll production environments where films, papers, aluminum foils, and non-woven materials must be checked for printing defects, contamination, or pattern deviations before final packaging or downstream processing. During operation, the web material is unwound, guided through an inspection area equipped with optical systems, and then rewound under controlled tension.

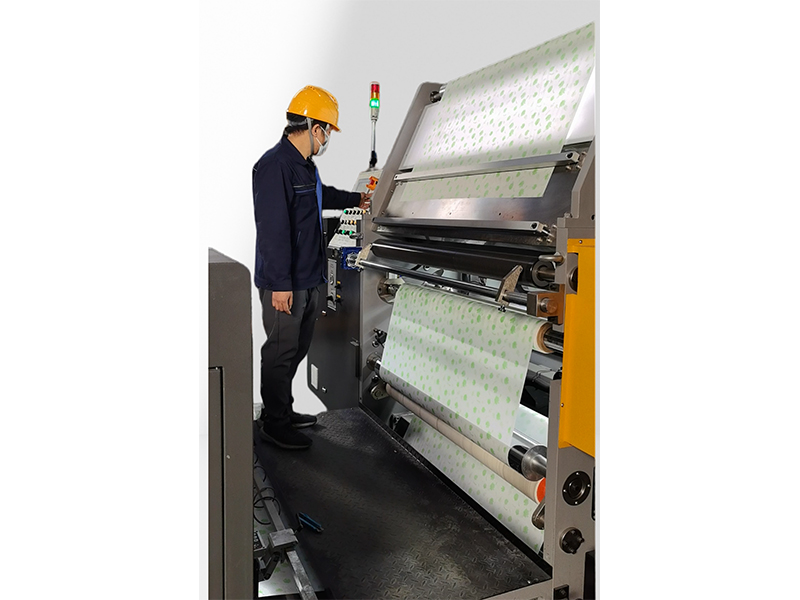

From the operator perspective, the machine provides a stable and highly controlled inspection process where defects can be identified in real time while maintaining continuous material movement. High resolution cameras, LED lighting systems, and precise tension control allow the operator to monitor product quality without interrupting production flow. This improves quality verification before shipment and ensures that finished roll materials meet required manufacturing standards.

High Speed

The equipment operates at high production speeds suitable for continuous roll inspection. According to the technical data, the machine reaches a maximum operating speed of 600 meters per minute while maintaining stable web tension and accurate inspection. High speed operation allows large roll materials to be processed efficiently without interrupting the converting line. Maintaining inspection accuracy at such speeds requires synchronized servo control systems and precision rollers that ensure stable material movement across the inspection area.

Wide Web

The machine supports wide material processing with a maximum web width of 1300 millimeters. This width capacity allows the equipment to handle large roll materials used in packaging films, flexible laminates, and industrial paper products. Processing wider materials increases production efficiency because a single inspection pass can verify large format rolls without splitting them into smaller sections. This wide web capability is particularly important in modern converting operations where wide roll formats are commonly used to improve manufacturing throughput.

Large Rolls

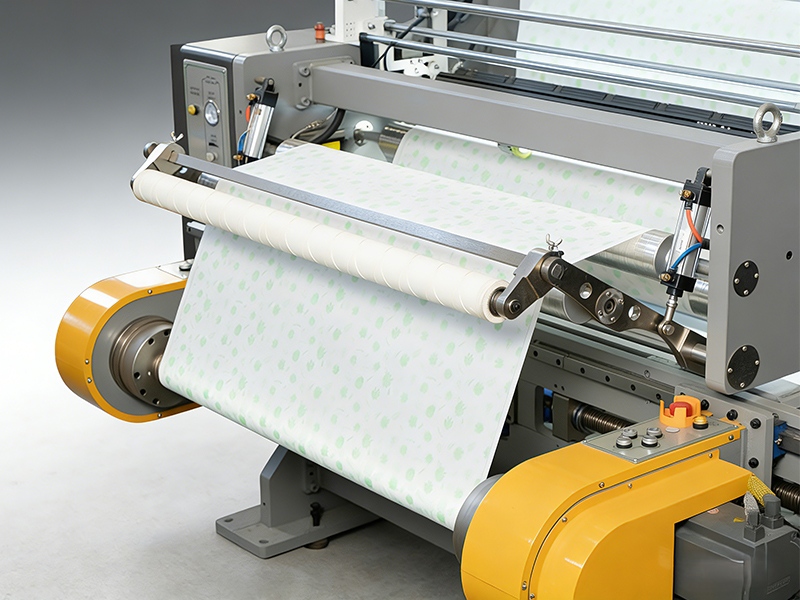

The equipment is designed to handle large roll diameters during both unwinding and rewinding processes. The technical specification shows that both the unwind diameter and rewind diameter can reach 1000 millimeters. Large roll capacity reduces the frequency of roll changes during operation and increases production continuity. Handling large roll sizes also improves efficiency in packaging and printing industries where material rolls are often produced in high volume formats to reduce downtime and logistics complexity.

Vision System

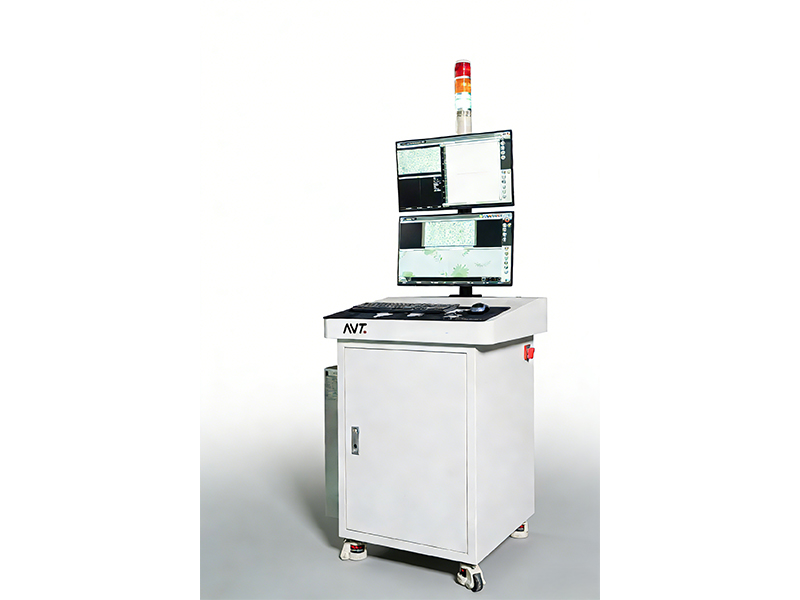

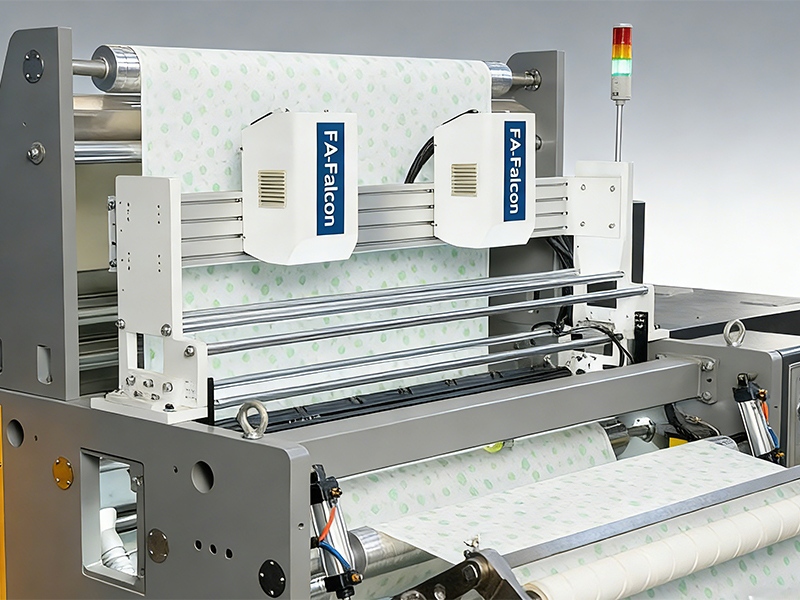

The machine is equipped with an image comparison inspection system designed to detect printing deviations and foreign materials on roll surfaces. High resolution cameras combined with LED illumination provide continuous visual monitoring of the moving web. These systems analyze printed patterns and surface conditions during production. Industrial inspection cameras typically capture images at speeds exceeding several thousand frames per minute, enabling accurate detection of defects even when the web material is moving at high speeds.

Servo Control

The equipment uses advanced motion control technology to maintain stable web movement and tension during inspection. According to the specification, the control system integrates high performance servo drives that coordinate unwinding, guiding, inspection, and rewinding processes. Servo systems provide precise speed synchronization and accurate web positioning. In industrial converting equipment, servo positioning accuracy can reach tolerance levels within fractions of a millimeter, ensuring that inspection cameras capture consistent material surfaces throughout the entire production cycle.

Film Production

Inspection rewinding machines are widely used in film manufacturing facilities where printed plastic films must be inspected before packaging. Materials such as PE, BOPP, PET, and CPP films are commonly produced in roll formats exceeding 1000 millimeters in width. After printing or coating processes, the rolls pass through inspection equipment to verify surface quality and printing accuracy. This process helps ensure that the final film products meet manufacturing quality requirements before shipment to packaging companies.

Paper Industry

Paper converting operations use inspection rewinding machines to verify printed paper rolls before cutting or packaging. Large paper rolls produced in industrial mills may exceed several hundred meters in length and require consistent quality verification. Inspection systems detect printing errors, contamination, or surface irregularities while the material is rewound into finished rolls. This inspection step improves quality control during the paper converting stage and reduces defective output.

Packaging Plants

Flexible packaging production lines rely on inspection rewinding machines to ensure that printed packaging materials meet visual quality standards. Packaging films often contain logos, product information, and color patterns that must remain consistent throughout the roll. During inspection, the machine analyzes the printed surface and identifies deviations in printing alignment or color patterns. This verification step helps maintain packaging quality before the materials are delivered to filling or sealing processes.

Aluminum Foil

Aluminum foil converting factories use inspection rewinding equipment to inspect printed foil rolls used in food and pharmaceutical packaging. Aluminum foil materials require surface inspection to ensure that printing layers and protective coatings remain uniform. During inspection, the foil web moves through a controlled path where optical systems monitor the surface continuously. This ensures that the finished foil rolls meet strict quality standards before entering packaging production lines.

Nonwoven Fabric

Nonwoven material manufacturers use inspection rewinding machines to verify printed or patterned fabrics used in hygiene products and industrial applications. Nonwoven rolls are commonly produced in wide web formats and require continuous inspection to detect contamination or pattern deviations. The inspection rewinding process ensures that large roll materials maintain consistent appearance and structure before they are converted into final products.

Printing Industry

Printing factories that produce roll materials rely on inspection rewinding machines to perform final quality checks after printing operations. Printed rolls often contain repeated patterns or graphic designs that must remain consistent across the entire length of the roll. Optical inspection systems compare printed images in real time and identify deviations. This final inspection stage helps printing companies maintain product quality before delivering rolls to downstream converting processes.

Converting Lines

Industrial converting lines integrate inspection rewinding machines as a final stage before finished roll shipment. Converting operations process materials such as films, laminates, and specialty papers. Inspection equipment verifies the surface condition and printing accuracy of these materials before they are packed for delivery. This step improves production reliability by ensuring that only qualified roll materials proceed to packaging and distribution stages.
