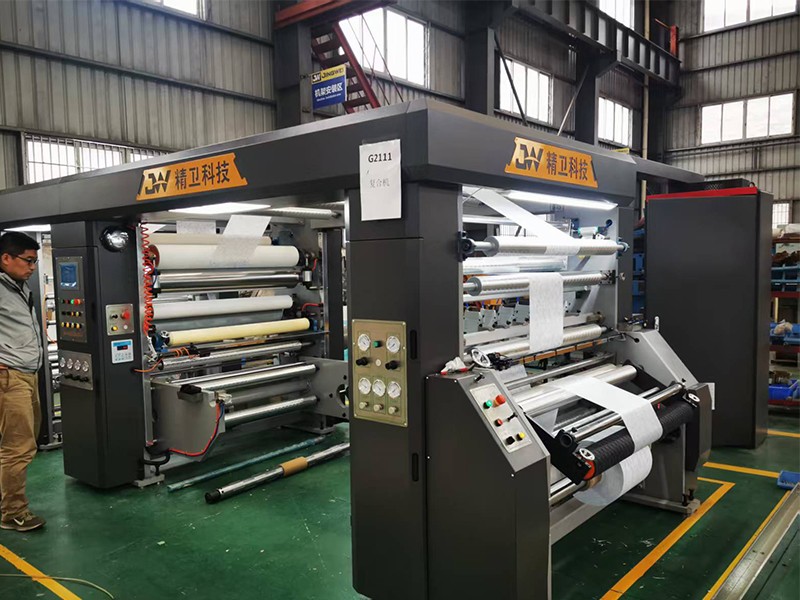

Hot-Melt Laminating Machine
Category：Hot-Melt Laminating Machine
Online Defect Detection System
-
+86-18000876276 WhatsApp

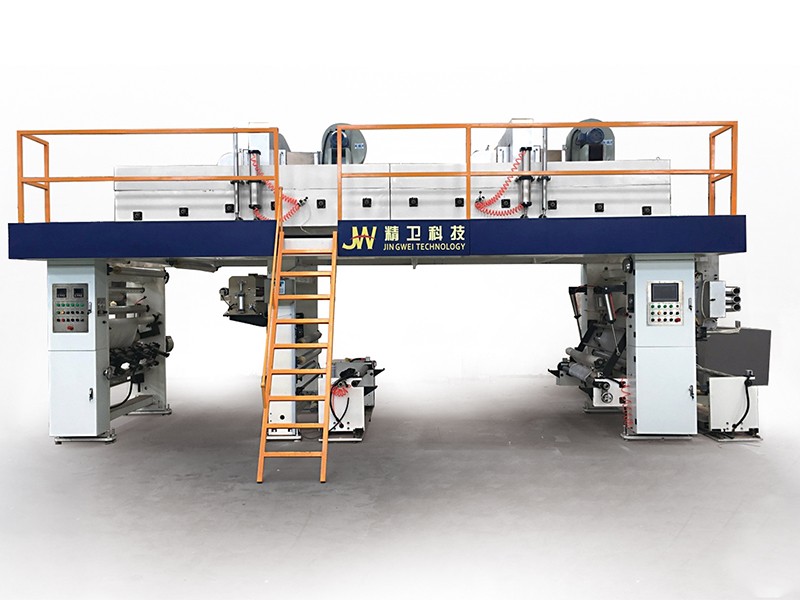

Hot Melt Adhesive Lamination Machine is mainly composed of hot melt adhesive coating system, material unwinding system, composite lamination unit, automatic tension control device, winding system and intelligent PLC touch operation interface. It is an efficient industrial equipment designed for compounding various materials through hot melt adhesive bonding technology.
Hot-Melt Laminating Machine Parameter
| Model No. | Effective Width Of Material: | Max Unwind Dia | Max Rewind Dia | Glue Type | Max Speed | Materials |
| JW-FH1300RR | 300-1300mm | Φ1000mm | Φ800mm | Hot Melt Adhesive | 300m/min | PE、Non-Woven Fabric |
| JW-FH-1800RR | 300-1800mm | Φ1000mm | Φ800mm | Hot Melt Adhesive | 300m/min | PE、Non-Woven Fabric |
| JW-FH-2400RR | 600-2400mm | Φ1000mm | Φ800mm | Hot Melt Adhesive | 300m/min | PE、Non-Woven Fabric |
※Remarks: Other sizes of machines are available upon request
Hot-Melt Laminating Machine Features
High-speed operation: 300 meters/minute continuous compounding
The maximum operating speed of Hot Melt Adhesive Lamination Machine is 300 meters/minute, which is suitable for large-scale continuous production. Whether it is 1300mm, 1800mm or 2400mm width, it can achieve long-term stable operation, greatly improve production efficiency and reduce downtime waiting.
Precise tension control: full servo automatic adjustment
Hot Melt Adhesive Lamination Machine adopts a full servo drive control system to automatically adjust the unwinding, compounding and winding tension, with fast response speed and error less than ±1N, ensuring that the material will not wrinkle, deflect or break during the compounding process, suitable for products with extremely high flatness requirements.
Uniform Glue Coating: Stable Coating Thickness Control
Hot Melt Adhesive Lamination Machine is equipped with a constant temperature control hot melt adhesive system and a multi-point temperature monitoring device to ensure that the temperature of the adhesive is constant during the coating process, the viscosity is consistent, and the coating thickness error is controlled within ±2g/m². The composite product has a delicate feel, no offset printing, and no glue seepage.
Environmentally friendly glue: 100% solid solvent-free hot melt adhesive
The hot melt adhesive used is 100% solid, does not contain any volatile organic solvents, and complies with European and American ROHS and REACH environmental certification standards. It has the advantages of no pollution, no odor, and no residue, and is suitable for fields with extremely high requirements for health and safety standards.
Energy-saving and high efficiency: production costs are significantly reduced
The hot melt adhesive heating system adopts multi-zone independent heating control, with high thermal efficiency and rapid response, and reduces energy consumption by 30% compared with traditional composite methods. No need for drying, saving space, reducing power consumption and maintenance costs, it is currently the most cost-effective composite solution.
1. Adult Hygiene Pad Laminates
Windeed applies the hot-melt laminating machine to produce breathable laminates for adult hygiene pads. The precise bonding technology ensures high-strength adhesion without damaging delicate films, improving comfort and product durability.
2. Feminine Care Product Laminates
Qifeng uses the laminating machine to combine nonwoven fabrics with breathable films for sanitary napkins. This ensures uniform lamination, thin structure, and softness, enhancing the quality of feminine hygiene products.
3. Eco-friendly Laminated Films
Zhaoan Tech leverages this equipment to produce biodegradable laminated films for sustainable hygiene packaging. The machine’s high-speed precision allows efficient production while maintaining eco-friendly material properties.
4. Protective Workwear Laminates
Xinghuo integrates the laminating machine into its production of protective workwear materials. The strong yet breathable laminates improve comfort and safety, meeting the growing demand for high-performance PPE.
Hot-Melt Laminating Machine Care and Maintenance
Regularly clean the hot melt adhesive coating head
The surface of the coating head needs to be cleaned with a fiber-free cloth every week to prevent nozzle clogging and glue overflow. Especially in the continuous production process, it is recommended to clean after each shift to extend the life of the nozzle and ensure coating uniformity.
Check the accuracy of the temperature control system
The multi-point temperature sensing system needs to be checked monthly to ensure that the heating range of the hot melt adhesive is always within the set temperature ±3℃ to avoid carbonization of the glue or loose bonding due to temperature control fluctuations.
Maintain the synchronization of the unwinding/rewinding shafts
The synchronous control mechanism of the unwinding and rewinding devices needs to be checked regularly to ensure that the servo motor and the encoder work in coordination. Every quarter, it is necessary to check whether the synchronization error is less than ±2mm to ensure that the material bonding is always in a tension balance state.
Replace the filter system and regular inspection of the melt tank
It is recommended to replace the hot melt adhesive filter every six months, and thoroughly clean and inspect the inside of the melt tank to prevent glue residue from carbonizing and clogging the pipeline, affecting the coating efficiency and stability.
Regularly upgrade the software system
It is recommended to contact the manufacturer's engineering and technical team every quarter to remotely update or maintain the system software to ensure that the PLC logic program is in the optimal control version to be compatible with more material types and composite requirements.
