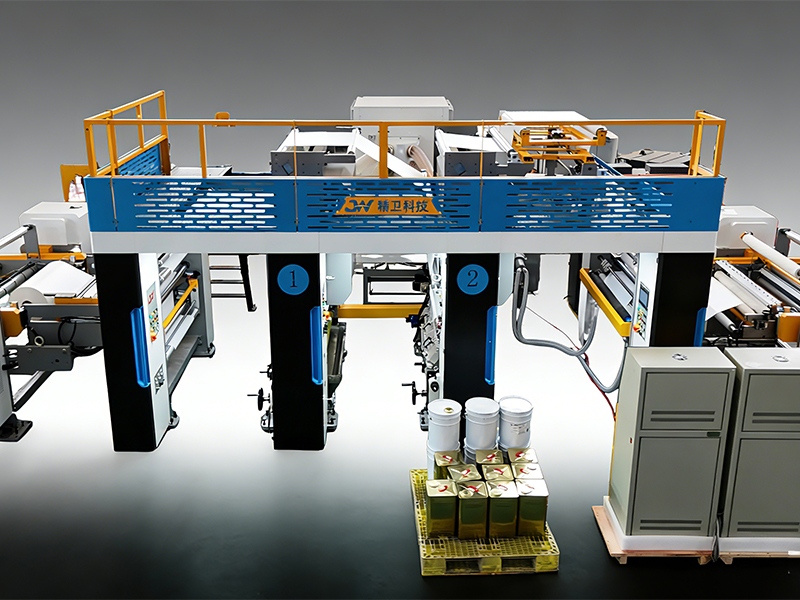

The Two Color Rotogravure Printing Machine is an industrial roll to roll printing system designed for continuous film processing. The machine integrates unwinding, two printing units, drying sections, and rewinding into a unified production structure. Materials move through multiple guide rollers and printing cylinders while operators monitor the process from the front operation area. The mechanical shaft transmission synchronizes roller rotation and printing cylinder movement to maintain stable operation. The machine frame provides clear access to the printing units and control system, allowing operators to manage production parameters and monitor material movement during continuous printing processes.

High Speed

The equipment supports continuous printing with a maximum operating speed of 250 meters per minute, enabling efficient processing of large roll materials. The mechanical shaft transmission ensures synchronized movement between rollers and printing cylinders, allowing the machine to maintain stable speed during long production cycles. This speed capability allows large printing batches to be completed within shorter production time while maintaining consistent material transport. Stable mechanical coordination ensures that the printing pressure and roller contact remain uniform across the printing process even when operating near the upper speed range.

Precise Register

The machine maintains accurate color alignment through synchronized cylinder rotation and controlled film transport. The printing registration accuracy can reach within plus or minus 0.1 millimeters, ensuring stable alignment between two printed colors during continuous operation. This accuracy level supports consistent pattern positioning across long roll materials. Stable registration control ensures that the printed images remain aligned throughout the entire roll length even during high speed production.

Wide Materials

The printing system can process a variety of flexible materials including PE, OPP, BOPP, CPP, PET, PVC, NY, paper, and nonwoven materials. The supported material width ranges from 1300 millimeters to 2500 millimeters, allowing the machine to handle both medium and large roll materials. The roller guidance structure maintains stable material movement across the full width of the film, ensuring consistent printing contact during processing.

Stable Tension

The equipment maintains stable tension control across unwinding, printing, and rewinding sections. The machine supports maximum unwinding diameters up to 1000 millimeters, allowing large film rolls to be processed without frequent replacement. Uniform tension control ensures smooth material transport and prevents film deformation during printing. Stable tension helps maintain consistent film alignment across the printing cylinders during long production cycles.

Cylinder Range

The machine supports printing cylinder diameters ranging from 120 millimeters to 300 millimeters, allowing flexible adjustment of printing repeat length. This cylinder range enables the machine to handle different printing configurations while maintaining stable operation. The cylinder mounting structure ensures accurate installation and synchronized rotation with the film transport system during printing.

Diaper Film

Disposable diaper production requires breathable film printed in large roll formats before product assembly. The printing machine processes wide film rolls that can reach up to 2500 millimeters in width, supporting high volume diaper manufacturing lines. Continuous roll printing allows large material batches to be prepared before entering automated diaper converting equipment.

Adult Pads

Adult incontinence product manufacturing uses printed breathable films as outer layers. These materials are processed in long roll formats before they are converted into finished hygiene products. With speeds reaching 250 meters per minute, the machine can process large film rolls efficiently within industrial production schedules.

Sanitary Pads

Sanitary napkin production lines require printed film layers that are later integrated into multilayer product structures. The printing system ensures pattern alignment with registration accuracy within plus or minus 0.1 millimeters, allowing consistent printed graphics across long film rolls used in sanitary product manufacturing.

Pet Pads

Pet absorbent pads use printed film surfaces before final product forming. The machine processes roll materials used for these products while supporting roll diameters up to 1000 millimeters, allowing extended production runs without frequent roll replacement.

Hygiene Sheets

Protective hygiene sheets use printed film layers produced in roll form before downstream processing. With production speeds up to 250 meters per minute, the machine can process large roll materials efficiently while maintaining stable roll transport across the printing units.

Mattress Pads

Mattress protection products use printed breathable films that are processed in continuous roll form. Large roll diameters and stable film transport allow the printing machine to support industrial scale mattress pad manufacturing lines.

Packaging Film

Flexible packaging materials such as BOPP, PET, CPP, and paper are printed before slitting and converting. With supported widths up to 2500 millimeters, the machine can process wide packaging films used in industrial packaging production systems.
